Century

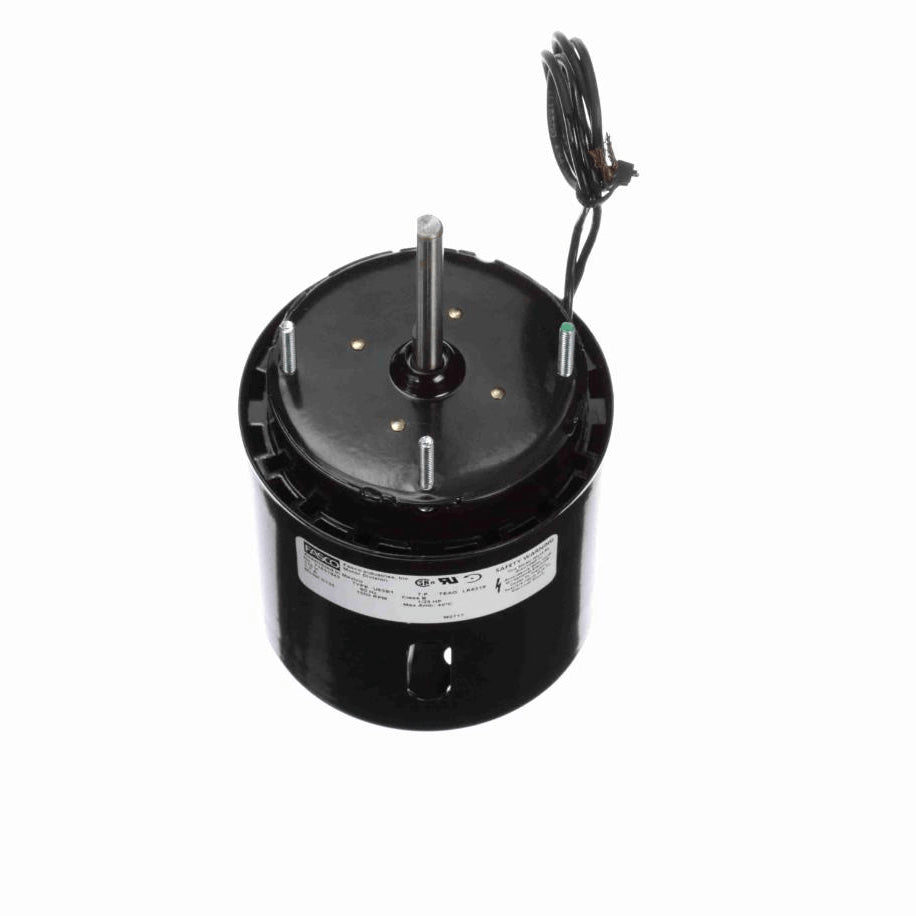

Fasco D135 Fan and Blower Motor, 1/25 HP, 1 Ph, 60 Hz, 115 V, 1500 RPM, 1 Speed, 3.3" Diameter, TEAO

Fasco D135 Fan and Blower Motor, 1/25 HP, 1 Ph, 60 Hz, 115 V, 1500 RPM, 1 Speed, 3.3" Diameter, TEAO

Dropship

SKU SKU:kpi045-D135

GTIN : 815585028567

MPN : D135

Regular price $167.89 USD
Regular price Sale price $167.89 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Century - D135

  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed, Fan Cooled, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End

Additional Information

Thermal ProtectionThermally Protected
Speed1500 rpm
Current1.70 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight4.40 LB
Country Of originMexico
Output HP1/25 Hp
Output KW0.03 kW
Service Factor1
Frame3.3
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.57 in
Shaft Diameter0.313 in
Shaft Extension2.30 in
CEN
Starting MethodAcross The Line
CategoryElectric Motors
Height4.5
Length8
ManufacturerCentury
MpnD135
SubcategoryAC Motors - NEMA
TypeHVAC - R Motors
Weight4.4
Width4.5
