category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D136
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4
width:
3.38

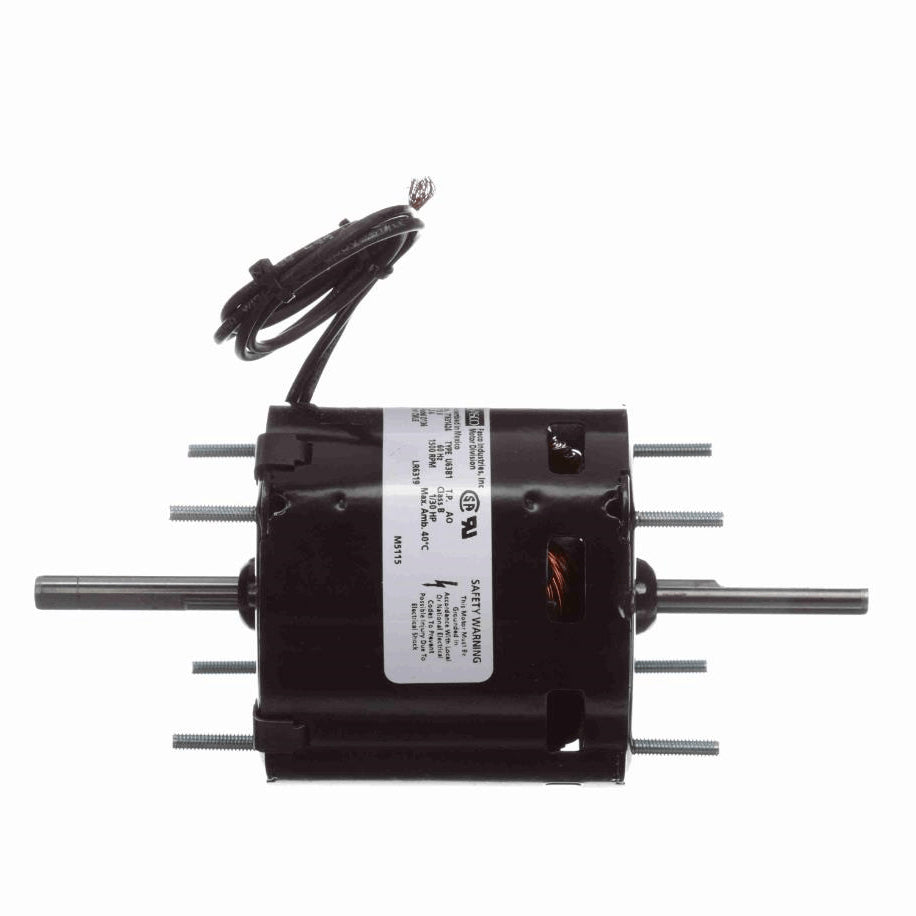

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Lead End End-Frame, Enclosed Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Double Shaft with Flat
- 12" Leads
- Extended Studs Shaft End and Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed1500 rpm
Current1.30 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight4.00 LB
Country Of originMexico
Output HP1/30 Hp
Output KW0.02 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Lead End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.95 in
Shaft Diameter0.313 in
Shaft Extension2.00 in
CEN
Starting MethodAcross The Line
