availability:
In stock
category:
Electric Motors
height:
5.63
length:
15
manufacturer:
Century
mpn:
D725
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11.75
width:
5.63

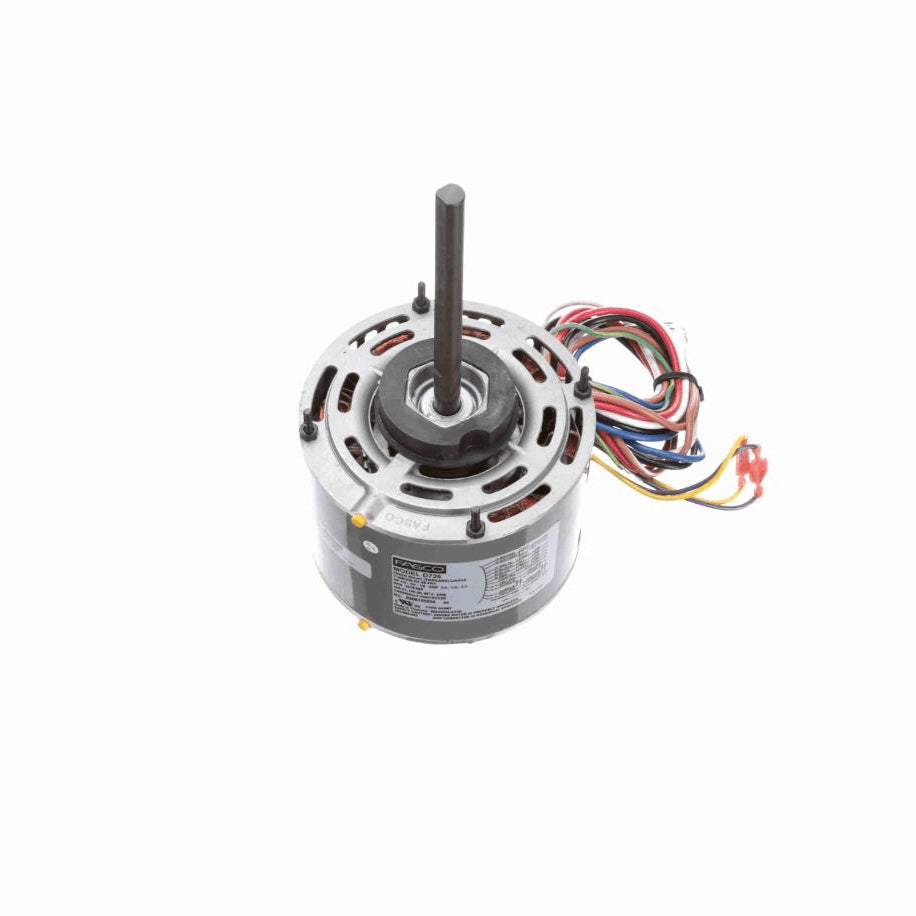

Product Overview
- Direct Drive Fan and Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 26" Leads
- Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current2.2-1.5-1.1 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.75 LB
Country Of originThailand
Output HP1/4-1/6-1/8 Hp
Output KW0.19 kW
Service Factor1
Frame48
EnclosureOpen Drip Proof
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length4.21 in
Shaft Diameter0.500 in
Shaft Extension5.94 in
CEN
Starting MethodAcross The Line
