category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D105
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.2
width:
3.38

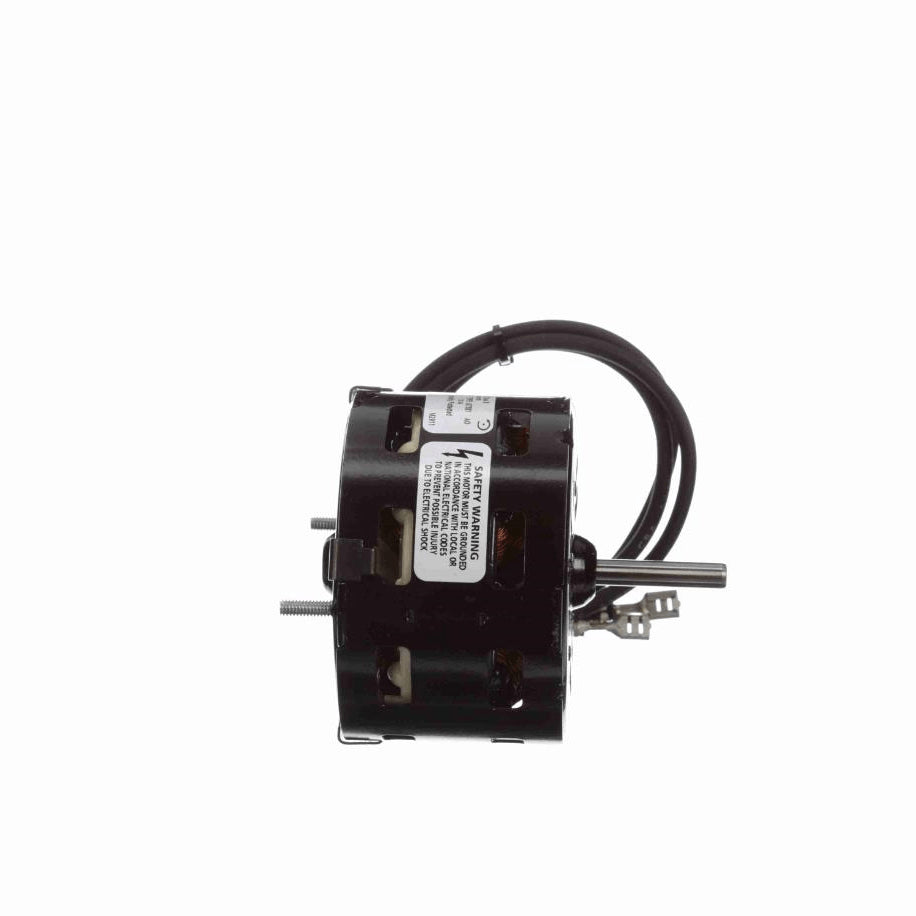

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft with Flat
- 21" Leads with Quick Connect Spade Terminals
- Extended Studs Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current1.00 A
Number of Speeds1
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAN
Weight2.20 LB
Country Of originMexico
Output HP1/40 Hp
Output KW0.02 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length1.95 in
Shaft Diameter0.250 in
Shaft Extension1.50 in
CEN
Starting MethodAcross The Line
