category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D203
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2
width:
3.38

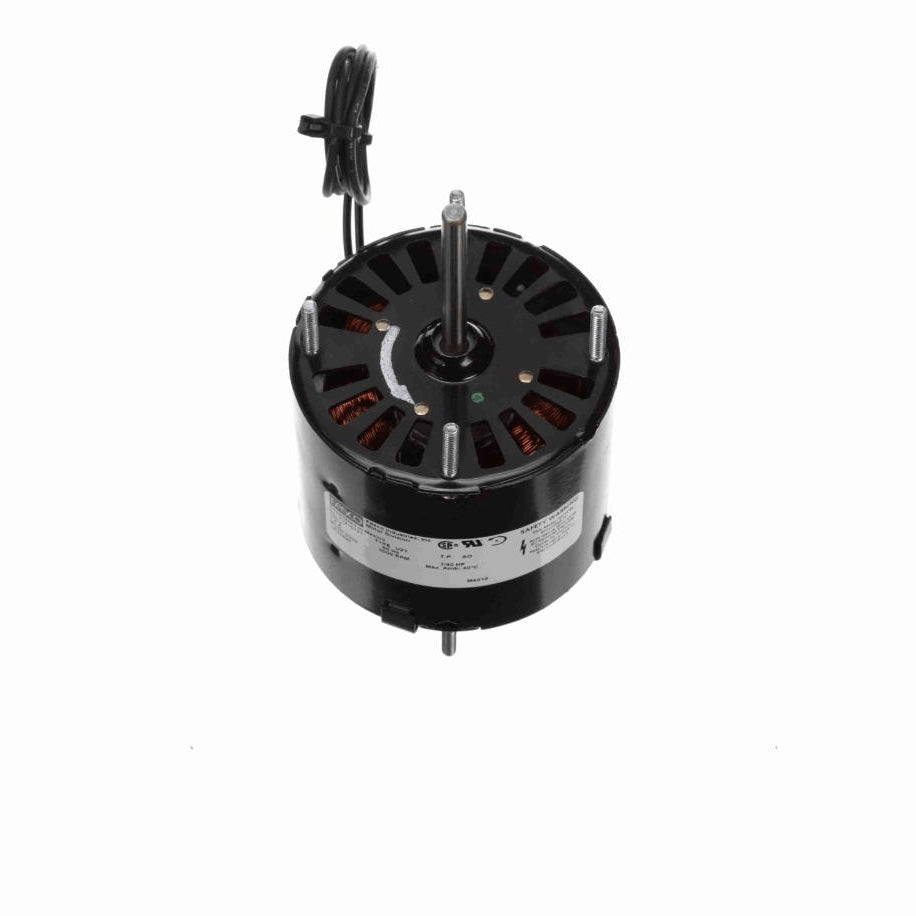

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End and Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current1.0 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight2.00 LB
Country Of originMexico
Output HP1/40 Hp
Output KW0.02 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.53 in
Shaft Diameter0.250 in
Shaft Extension2.25 in
HTC8501.10.6020
CEN
Starting MethodAcross The Line
