category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D608
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.8
width:
3.38

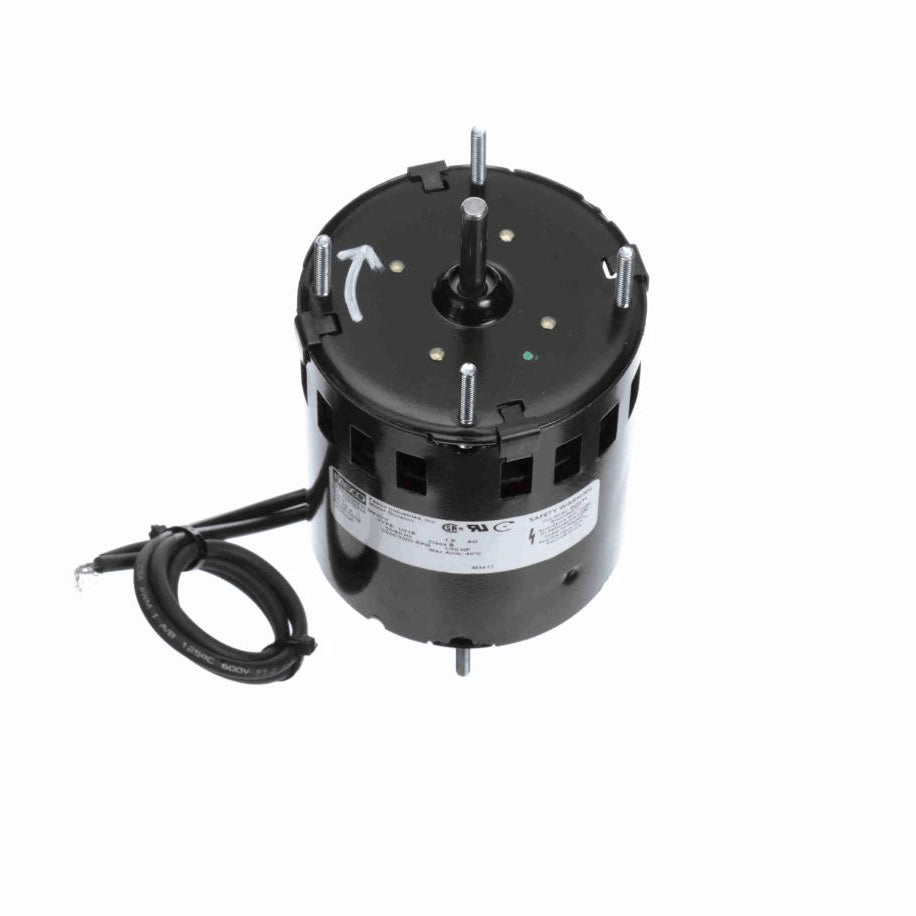

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Enclosed Shaft End End-Frame, Open Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End and Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed2500/3000 rpm
Current.64/.53 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight2.80 LB
Country Of originMexico
Output HP1/50 Hp
Output KW0.01 kW
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.50 in
Shaft Diameter0.250 in
Shaft Extension1.30 in
CEN
Starting MethodAcross The Line
Efficiency22 %
