category:
Electric Motors
height:
6.5
length:
10
manufacturer:
Century
mpn:
D0593
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10
width:
5.13

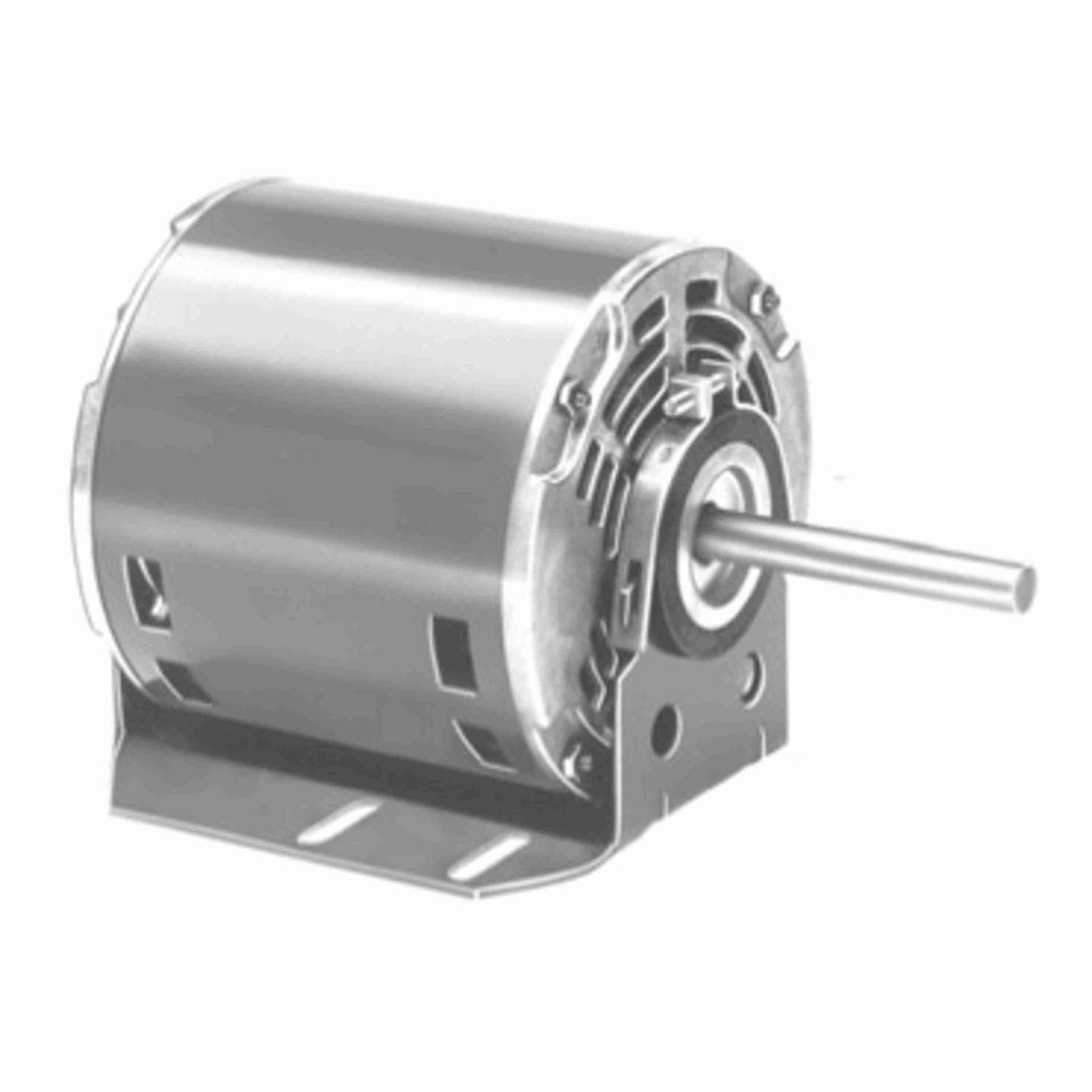

Product Overview
- Furnace Blower - Air Handler - Fan Coil Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current1.32 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.00 LB
Country Of originMexico
Output HP1/6 Hp
Output KW0.13 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise Shaft End
MountingResilient Base
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.00 in
Shaft Diameter0.500 in
Shaft Extension3.3 in
CEN
Starting MethodAcross The Line
