category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D1162
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3.6
width:
3.38

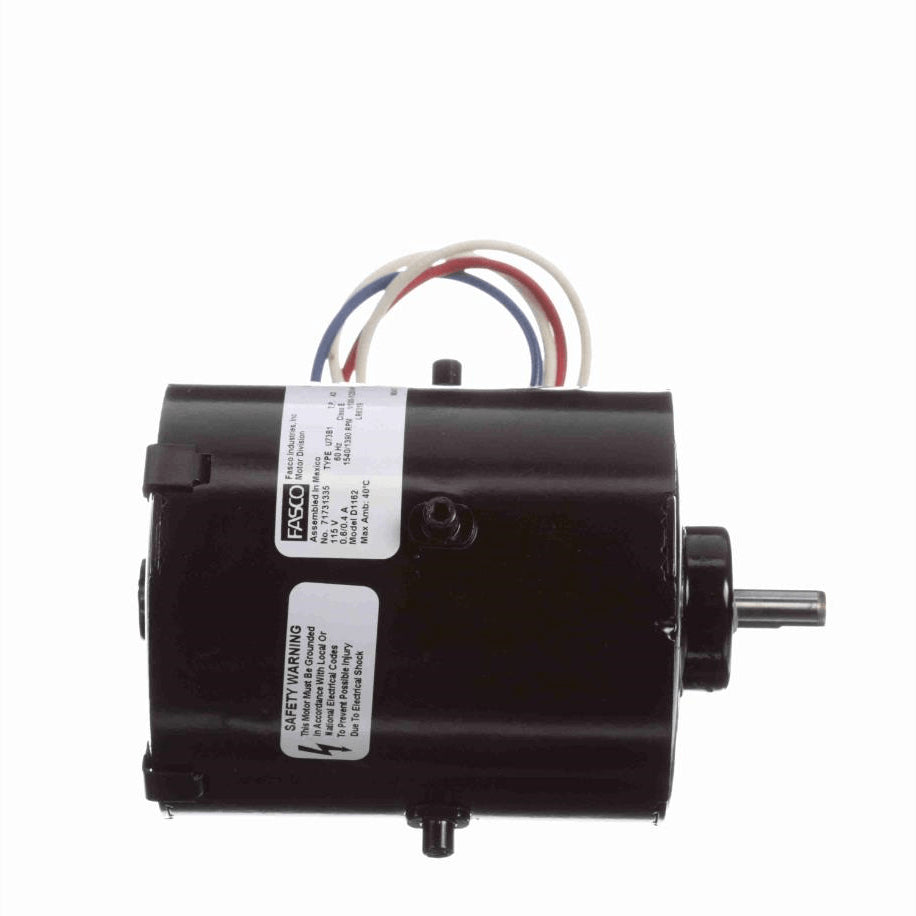

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 7" Leads, (2) Strip, (2) Terminal, (1) 10" Jumper Lead PIN Teminal
- Shell Mount
Additional Information
Thermal ProtectionThermally Protected
Speed1540/1390 rpm
Current0.60/0.40 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight3.60 LB
Country Of originMexico
Output HP1/100 - 1/250 Hp
Output KW0.01 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationReversible
MountingRound Belly Band
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.70 in
Shaft Diameter0.312 in
Shaft Extension1.15 in
CEN
Starting MethodAcross The Line
