category:
Electric Motors
height:
5
length:
8
manufacturer:
Century
mpn:
D1157
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4.03
width:
5.63

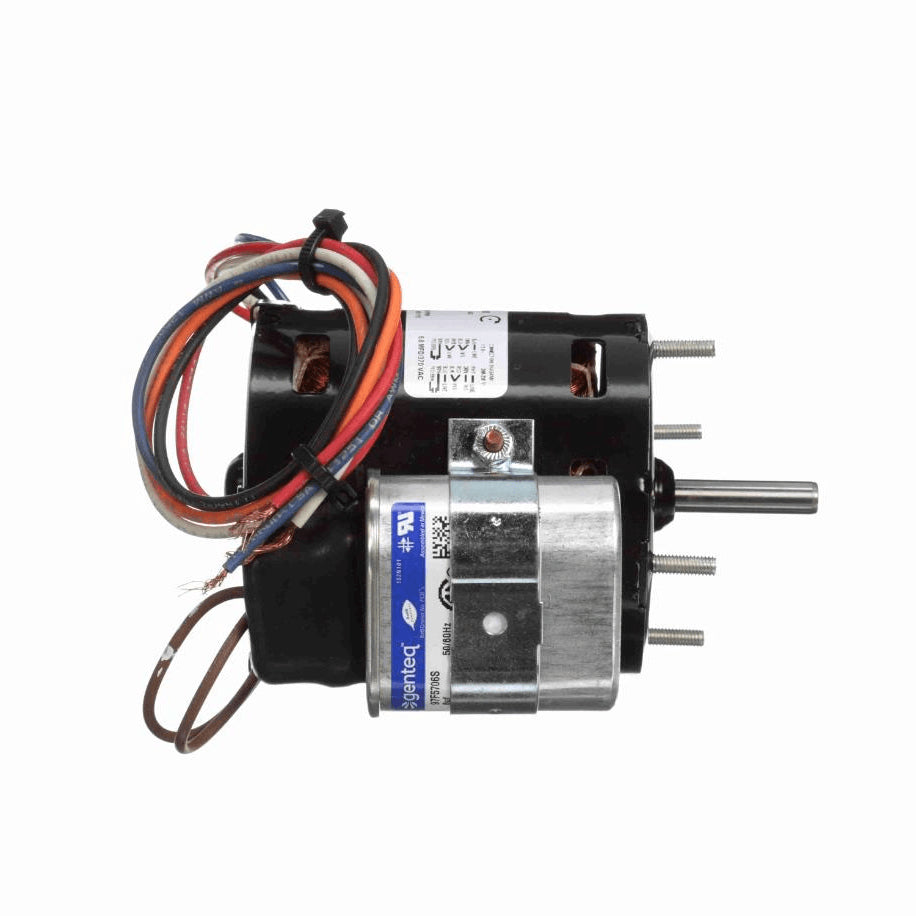

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 14.5" Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1350/1640 rpm
Current1.00/0.38//0.66/0.36 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight4.03 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.37 in
Shaft Diameter0.313 in
Shaft Extension1.50 in
CEN
Starting MethodAcross The Line
