category:
Electric Motors
height:
4.25
length:
8.88
manufacturer:
Century
mpn:
D408
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3.2
width:
4.25

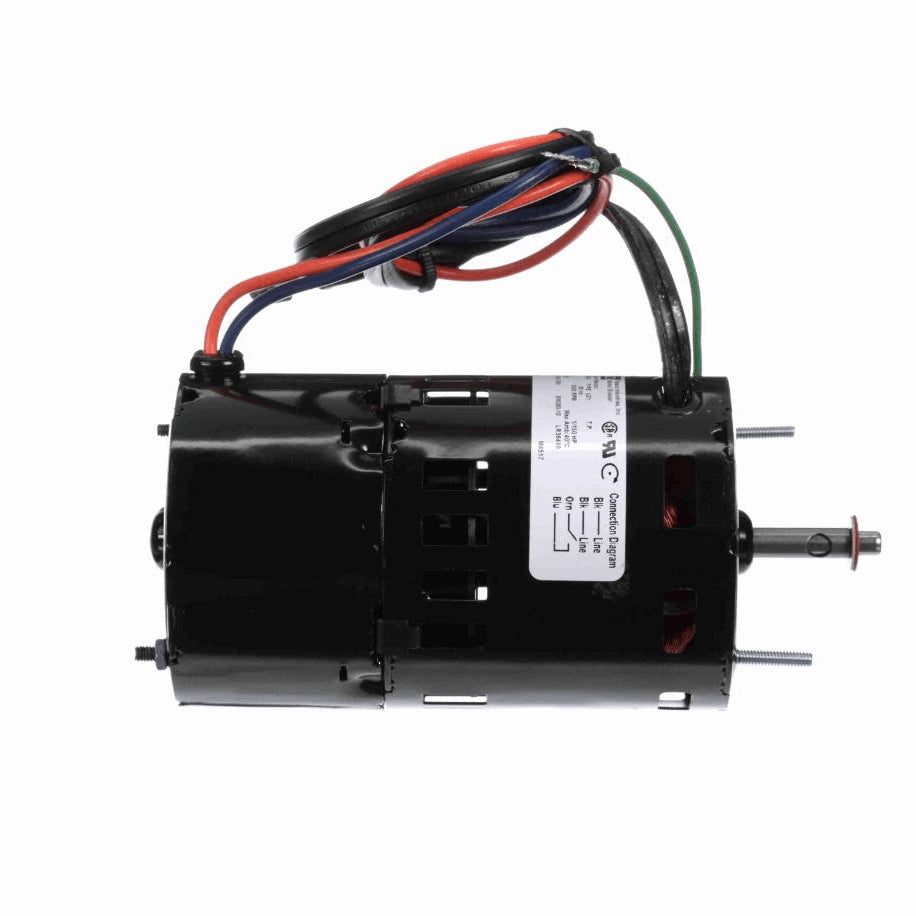

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Enclosed Shaft End End-Frame and Opposite Shaft End End-Frame, Open Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft wth Flat
- 22" Power Leads with AMP Terminal, 15" Switch Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current.48 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight3.20 LB
Country Of originMexico
Output HP1/150 Hp
Output KW0.01 kW
Frame3.3
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.24 in
Shaft Diameter0.250 in
Shaft Extension1.5 in
CEN
Starting MethodAcross The Line
