category:
Electric Motors
height:
4.38
length:
10.5
manufacturer:
Century
mpn:
D1158
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4.4
width:
5.38

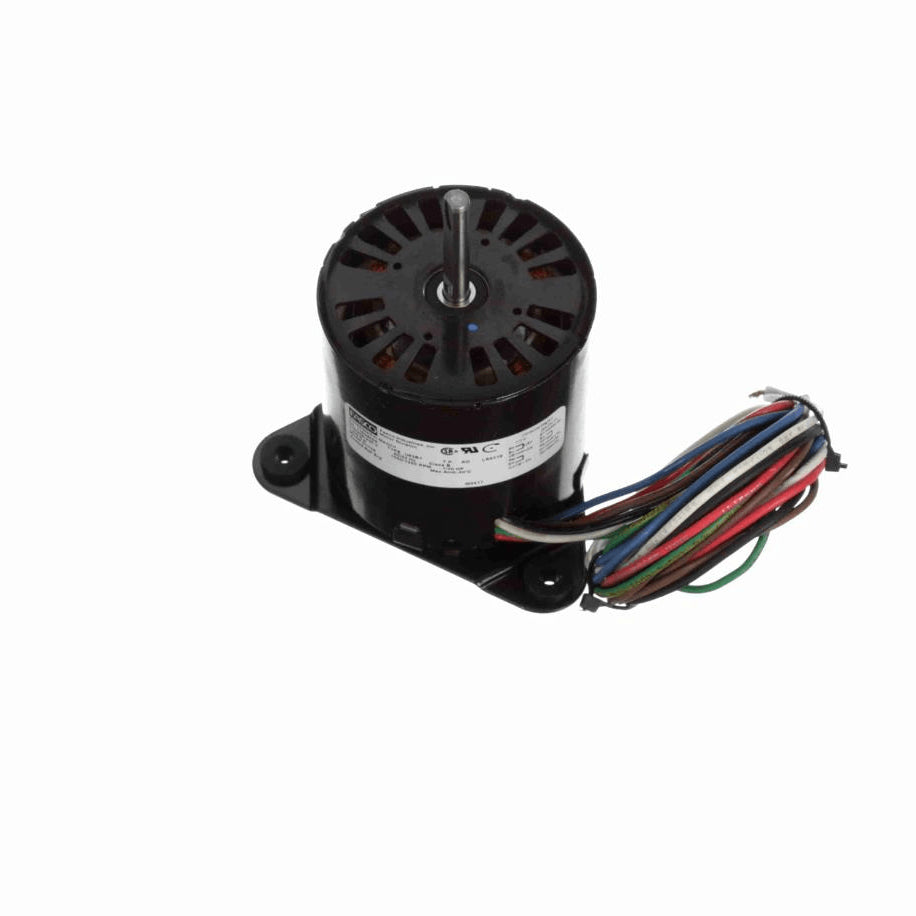

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End End-Frame, Enclosed Lead End End-Frame and Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 40" Leads
- Mounting Plate Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550/1350 rpm
Current1.40/0.80 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight4.40 LB
Country Of originMexico
Output HP1/20 Hp
Output KW0.04 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingLug
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.95 in
Shaft Diameter0.312 in
Shaft Extension1.65 in
CEN
Starting MethodAcross The Line
