category:
Electric Motors
height:
5.63
length:
15
manufacturer:
Century
mpn:
D783
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11.2
width:
5.63

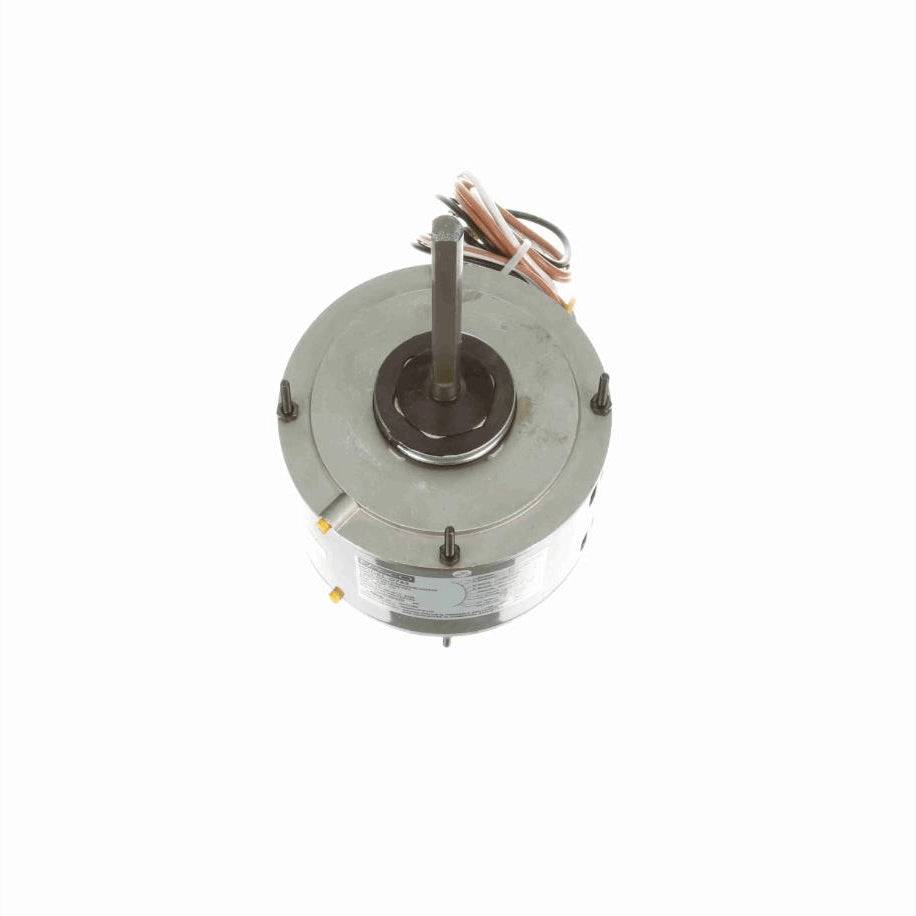

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Enclosed Shaft End End-Frame, Open Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 26" Leads with .5" Strip
- Extended Studs Shaft End and Lead End, Resilient Mounting Ring Shaft End and Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1625 rpm
Current1.58 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.20 LB
Country Of originThailand
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48
EnclosureOpen Drip Proof
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length3.45 in
Shaft Diameter0.500 in
Shaft Extension5.94 in
CEN
Starting MethodAcross The Line
