Century

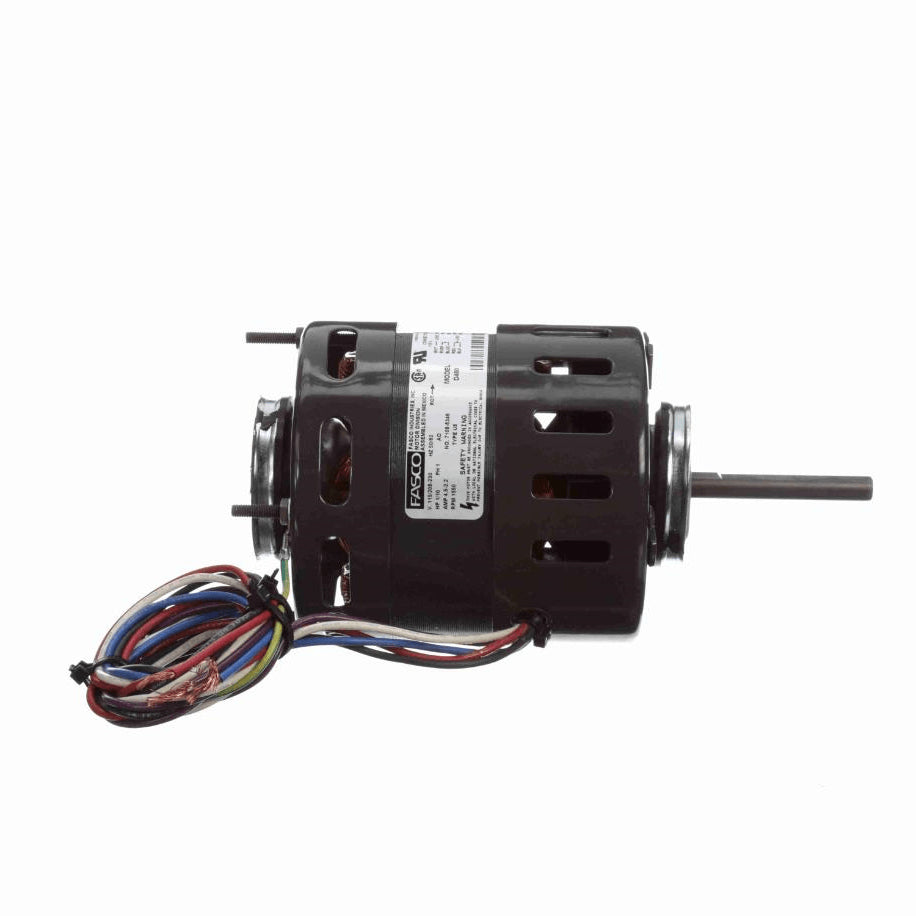

Fasco D480 Refrigeration Motor, 1/10 HP, 1 Ph, 60 Hz, 115/208-230 V, 1550 RPM, 1 Speed, 4.4" Diameter, OAO

Fasco D480 Refrigeration Motor, 1/10 HP, 1 Ph, 60 Hz, 115/208-230 V, 1550 RPM, 1 Speed, 4.4" Diameter, OAO

Dropship

SKU SKU:kpi045-D480

GTIN : 818508020150

MPN : D480

Regular price $196.61 USD
Regular price Sale price $196.61 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Century - D480

  • Refrigeration Fan Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Enclosed Shaft End End-Frame, Open Opposite Shaft End End-Frame and Shell, Air over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 3/8" Diameter Shaft with Flat
  • 31" Leads
  • Extended Studs Opposite Shaft End, Resilient Mounting Rings

Additional Information

Thermal ProtectionThermally Protected
Speed1550 rpm
Current4.5/2.2 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight7.40 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingResilient Ring - Extended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension3.15 in
CEN
Starting MethodAcross The Line
CategoryElectric Motors
Height10
Length4.38
ManufacturerCentury
MpnD480
SubcategoryAC Motors - NEMA
TypeHVAC - R Motors
Weight7.4
Width4.38
