category:
Electric Motors
height:
5.07
length:
8.27
manufacturer:
Century
mpn:
EM1127
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3.97
width:
3.62
Product Overview

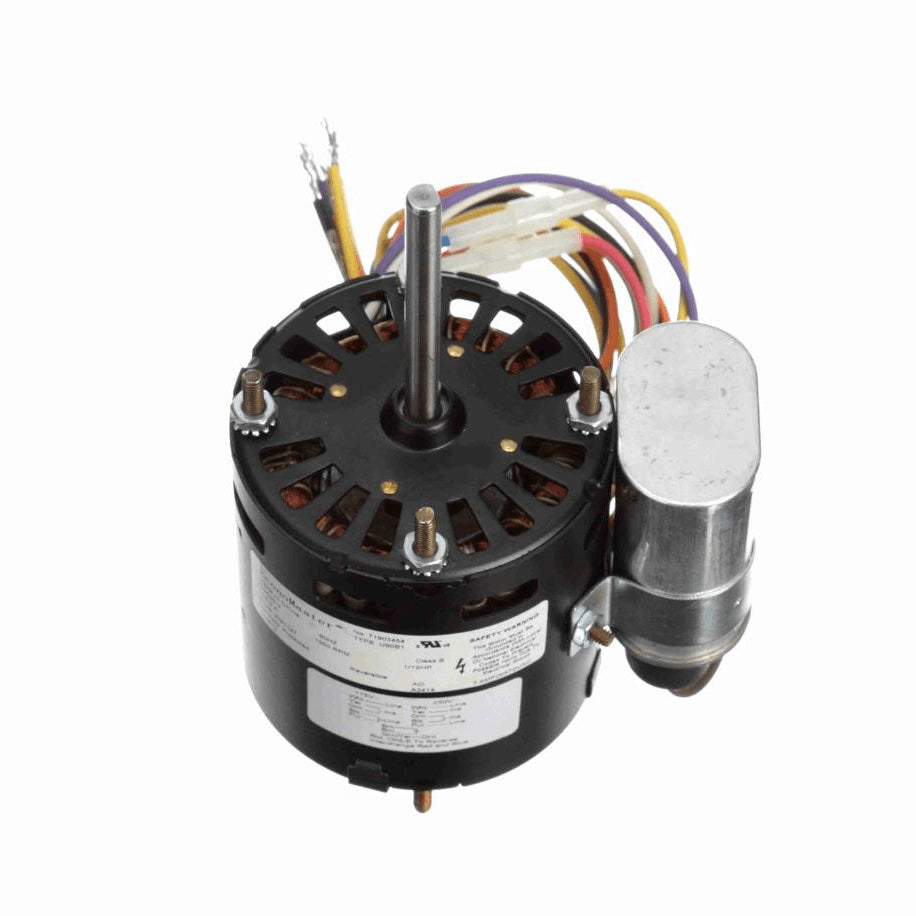

- EconoMaster - Refrigeration Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 20" Leads
- Extended Studs Shaft End and Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current1.10/0.60 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight3.97 LB
Country Of originChina
Output HP1/12 Hp
Output KW0.06 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.32 in
Shaft Diameter0.312 in
Shaft Extension3.00 in
CEN
Starting MethodAcross The Line
