category:
Electric Motors
height:
3.94
length:
8
manufacturer:
Century
mpn:
D672B
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5.43
width:
3.94

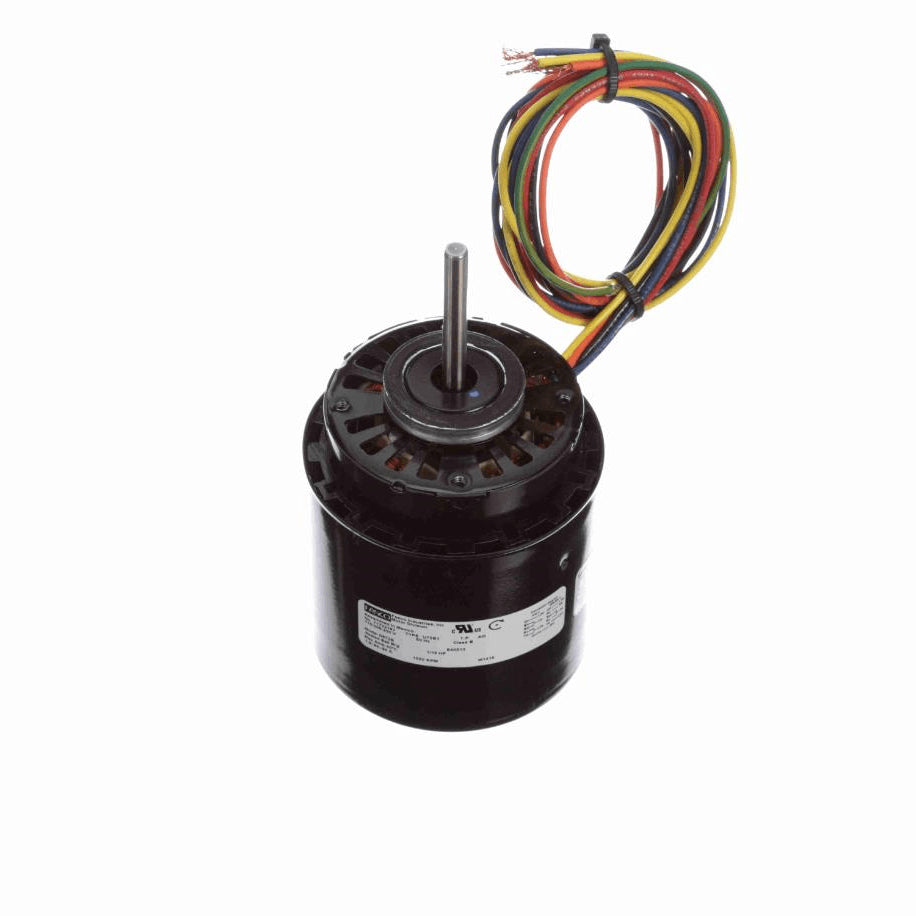

Product Overview
- General Purpose Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Fan Cooled, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 35" Leads
- Resilient Mounting Ring Shaft End and Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current1.90/0.84-0.94 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight5.43 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.07 in
Shaft Diameter0.312 in
Shaft Extension2.55 in
CEN
Starting MethodAcross The Line
