category:
Electric Motors
height:
10
length:
4.38
manufacturer:
Century
mpn:
D482
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5.8
width:
4.38
Product Overview

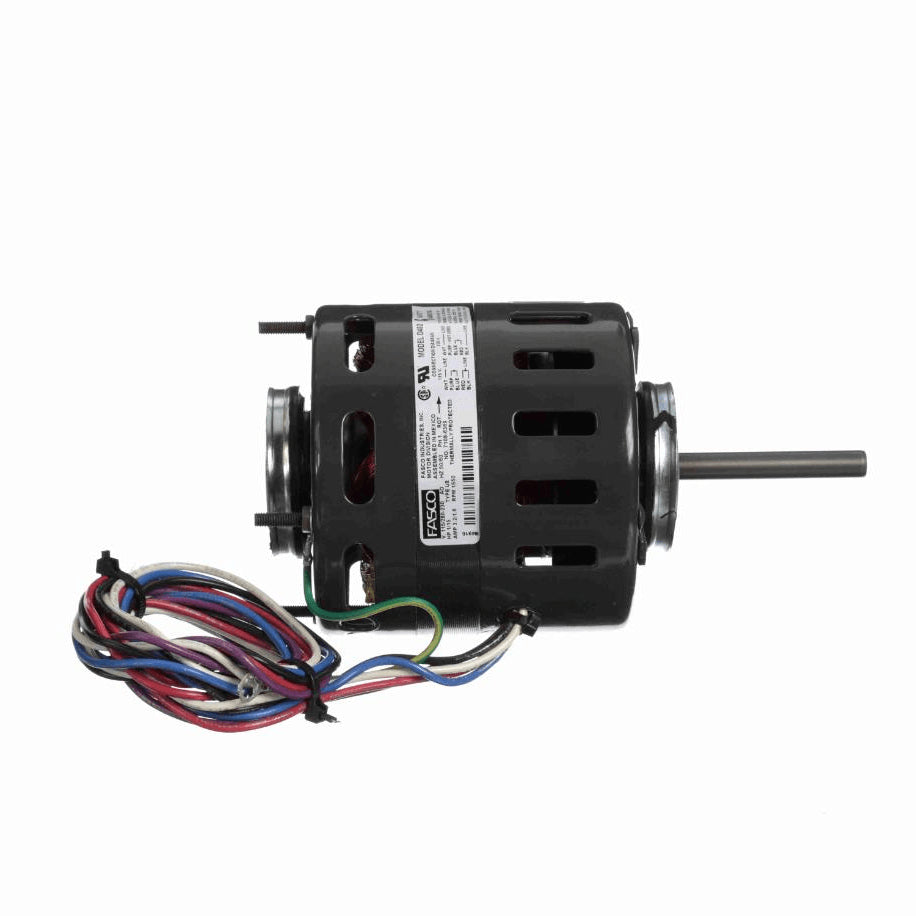

- Refrigeration Fan Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Enclosed Shaft End End-Frame, Open Opposite Shaft End End-Frame and Shell, Air over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 31" Leads
- Extended Studs Opposite Shaft End, Resilient Mounting Rings
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current3.2/1.6 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight5.80 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingResilient Ring - Extended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension3.15 in
CEN
Starting MethodAcross The Line
