category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D032A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.25
width:
3.38
Product Description

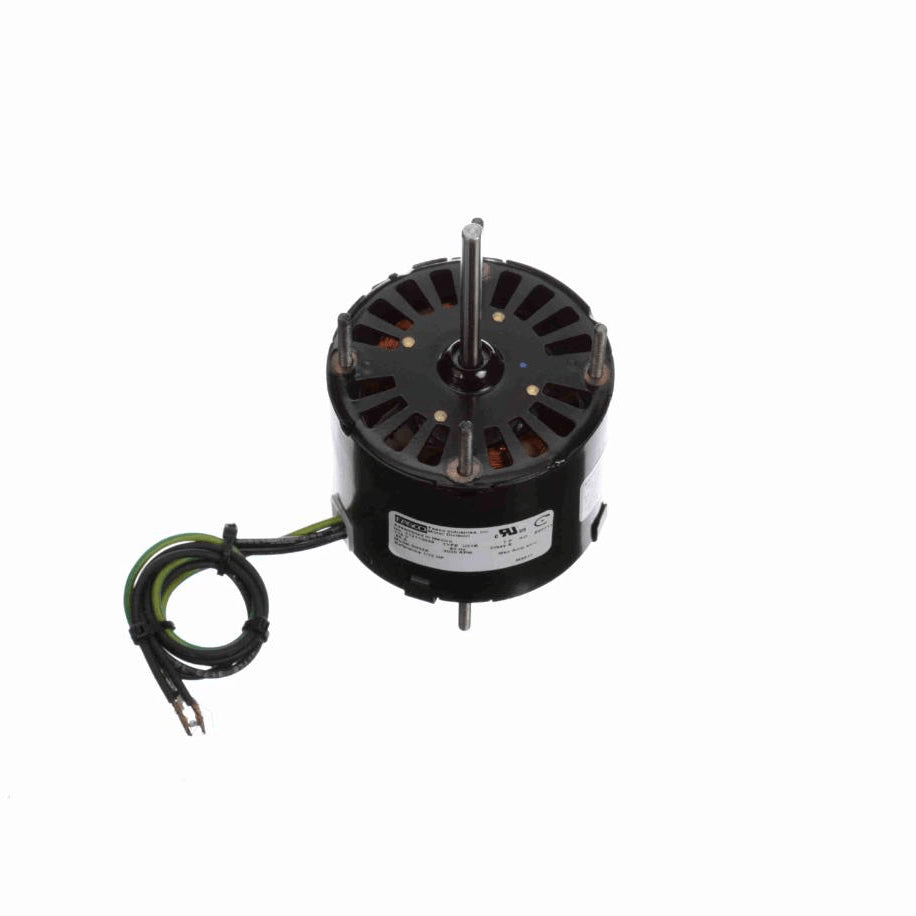

Century - D032A
- Fan and Blower Duty Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Double Shaft with Flat
- 12" Leads
- Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current0.65 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight2.25 LB
Country Of originMexico
Output HP1/70 Hp
Output KW0.01 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.55 in
Shaft Diameter0.250 in
Shaft Extension2.5 in
CEN
Starting MethodAcross The Line
