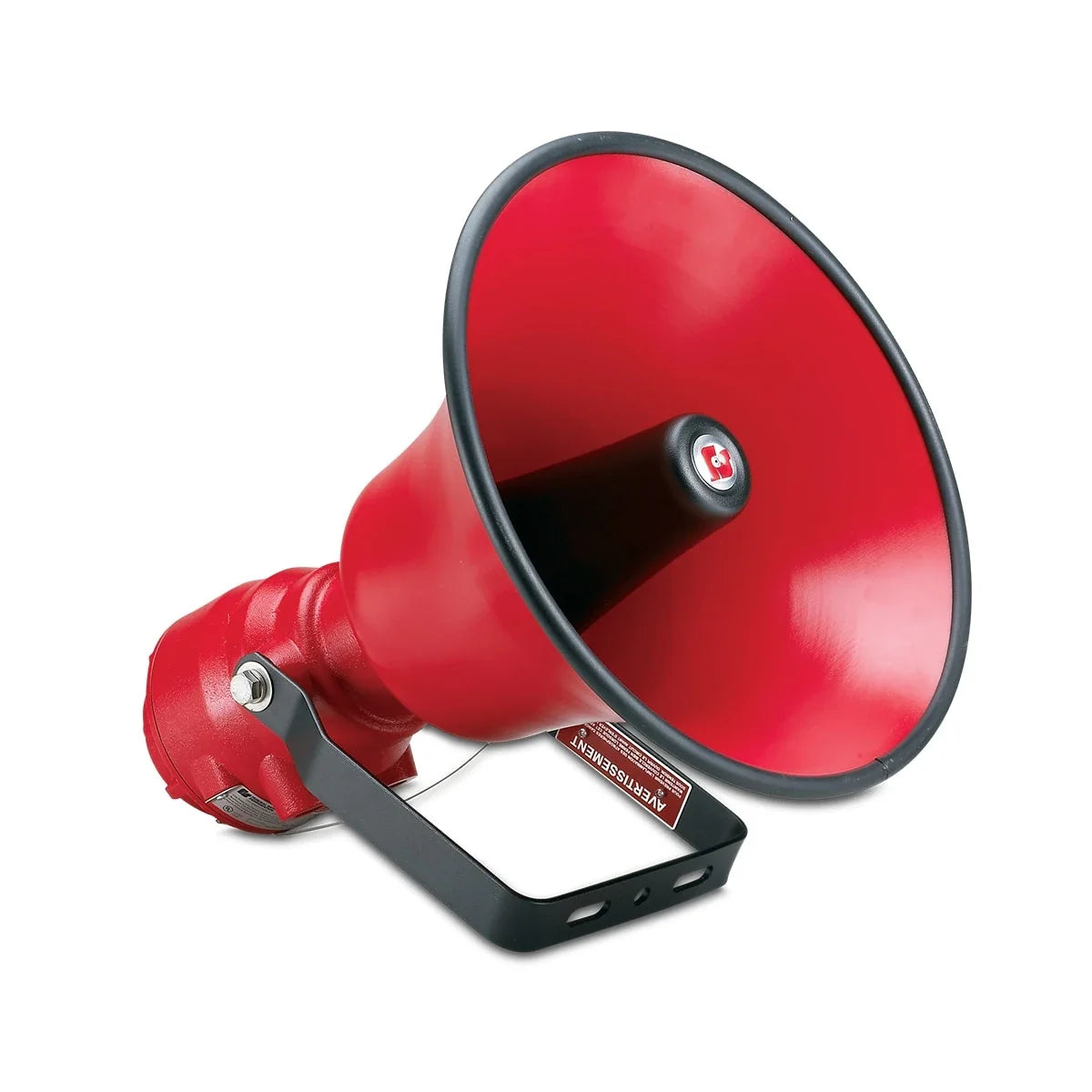

Federal Signal AM300X-R And AM302X AudioMaster® Public Address Explosion-Proof Speakers, Red

Product Description

Federal Signal - AM300X-R

Federal Signal’s Models AM300X and AM302X are transformer coupled, re-entrant speakers for use in public address or paging applications. These speakers feature rugged cones and projectors constructed of spun aluminum. The speaker wiring connections are enclosed in a dust- and moisture-proof, die-cast aluminum compartment. All external surfaces are sealed with a red or gray powder coat paint.

Model AM300X is 15 watt and the AM302X is 30 watt. The unique shape of the speaker projectors provides a 60° sound dispersion. The entire speaker can be swiveled 180° in order to direct sound effectively.

Models AM300X and AM302X can be used with supervised alarm notification systems or the AudioMaster® amplifiers with the AudioRouter™ to complete an industrial grade public address system.

Features

• 15 watt (AM300X) or 30 watt (AM302X)
• 25 or 70 Vrms
• Transformer coupled
• Re-entrant horn design
• Heavy-duty U-bracket swivel mount
• Type 4X, IP66 enclosure
• CSFM Approved for Model AM300X only
• UL and cUL for Class I, Division 1, Groups B, C and D; Class I, Division 2, Group A, B, C, and D; Class II, Division 2, Groups F and G; Class III
• AM300X is UL Fire Listed
