Product Description

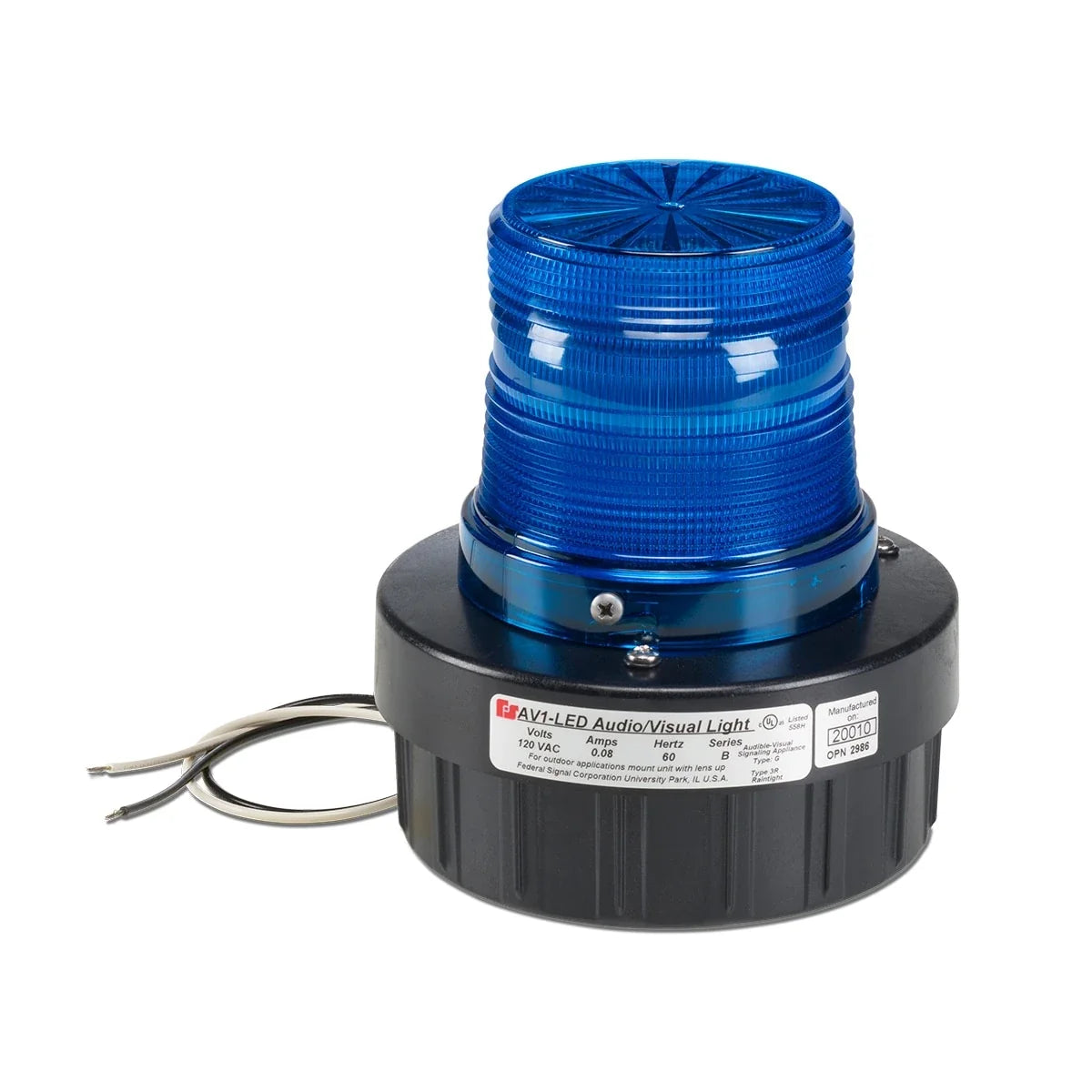

Federal Signal - AV1-LED-120B
The model AV1-LED warning light is a combination audible/visual signal. The warning light also features a 100% polycarbonate housing that is rated for Type 3R rain-tight applications.
All AV1-LED alert light units feature a twist-and-lock lens design to allow for tool-free access to the LED. The Fresnel lens provides superior visibility in all directions.
The integrated buzzer provides 85 dBa output @ 10 feet (95 dBa @ 1M). The unit can operate in two ways: flashing/buzzer combination or flashing only. The LED flash pattern can be field adjusted to 60 FPM or 75 FPM, via a jumper on the PC board.
Each unit is factory-assembled with two color-coded leads. If desired, the user can remove the leads and connect directly to the terminal block located at the base of the unit.
Features
- Available in 24 Vdc and 120 Vac
- Five lamp/lens colors: Amber, Blue, Clear, Green and Red
- 50,000-hour LED
- Surface, integrated 1/2-inch NPT pipe, and 4-inch electrical box mount
- Twist-off lens for easy access
- Internal buzzer produces 85 dBA at 10' (95 dBA at 1m)
- Flexible operation allows the unit to independently flash without buzzer
- PLC compatible
- Type 3R enclosure
- UL and cUL Listed
