category:
Audible Signals
country_of_origin:
US
manufacturer:
Federal Signal
mpn:
EHORN-024
subcategory:
Electro-Mechanical Horns
upc:
782979233497
weight:
12
Product Description

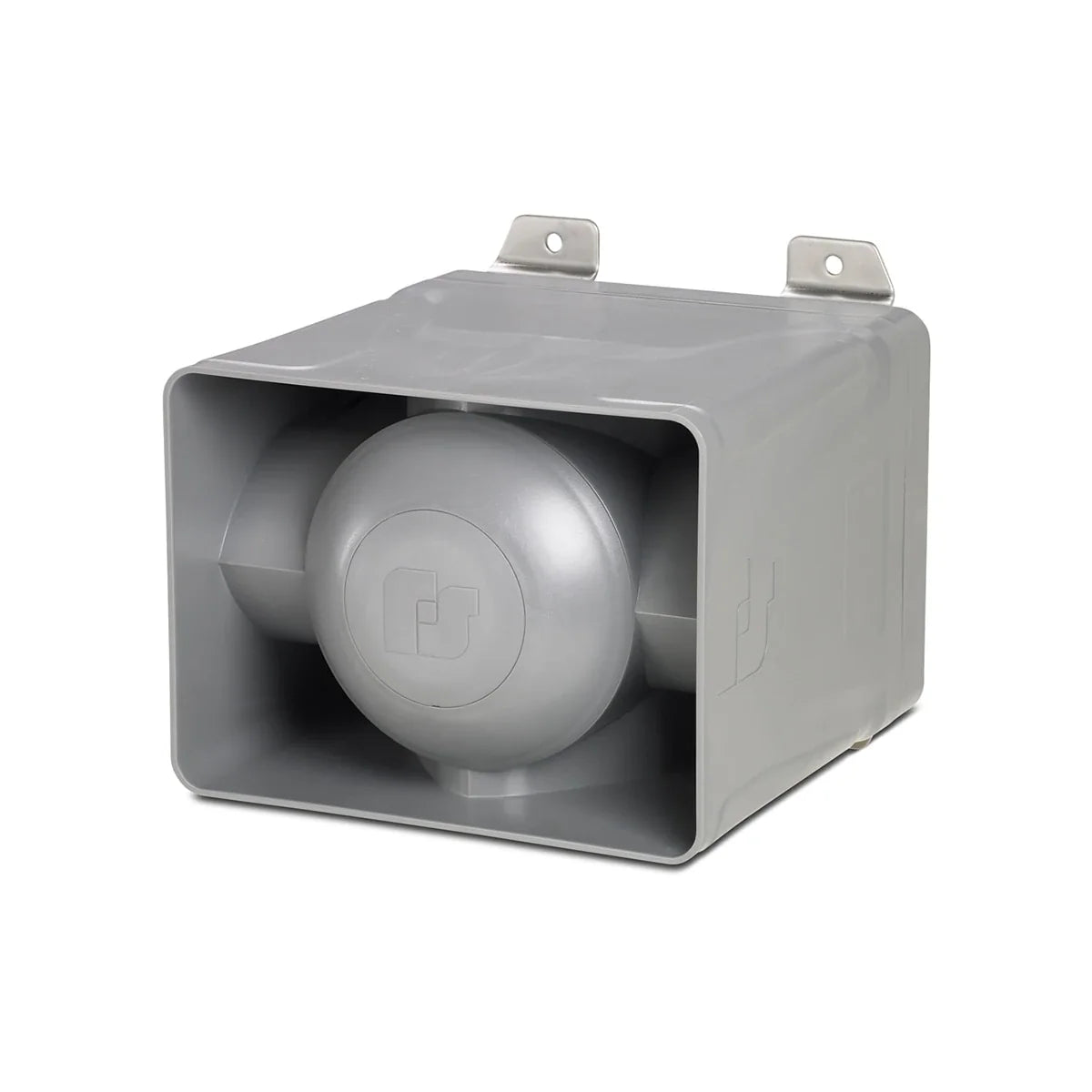

Federal Signal - EHORN-024
Model eHorn is an electronic horn capable of producing two high decibel horn tone outputs from the same unit through internal amplification and tone circuitry.
The Type 4X, IP66 housing is molded from glass reinforced polycarbonate plastic, making it resistant to ultra-violet light and ideal for indoor or outdoor use.
Model eHorn can be used as a stand-alone, high output, audible warning device in any application where voice paging is not required.
Typical applications include emergency warning, start and dismissal, general alarm and evacuation.
Features
- Multiple operating voltages 24VDC or 120-240VAC
- Produces one of two tones at three SPL (sound pressure levels)
- Replicates Federal Signal 52 and 55/56 horn tones
- Surface mount standard, U-bracket mount sold separately
- Produces 96-117 dBa @ 10' (106-127 dBa @ 1m) depending on tone and voltage
- Type 4X, IP66 enclosure
- Marine Rated
- UL and cUL Listed
Additional Information
Audible Signals X Voltage Variant4
Enclosure Rating ProdType 4X, IP66
Environmental Rating ProdOrdinary Location
Shipping Weight Kg7.6
Shipping Weight Lbs13.8
Voltage Variant24VDC
Weight11.7
Weight Kg5.3
