category:
Visual Signals
country_of_origin:
US
manufacturer:
Federal Signal
mpn:
LP22LED-012-024A
subcategory:
Flashing and Steady-Burning LED Lights
upc:
782979235774
Product Description

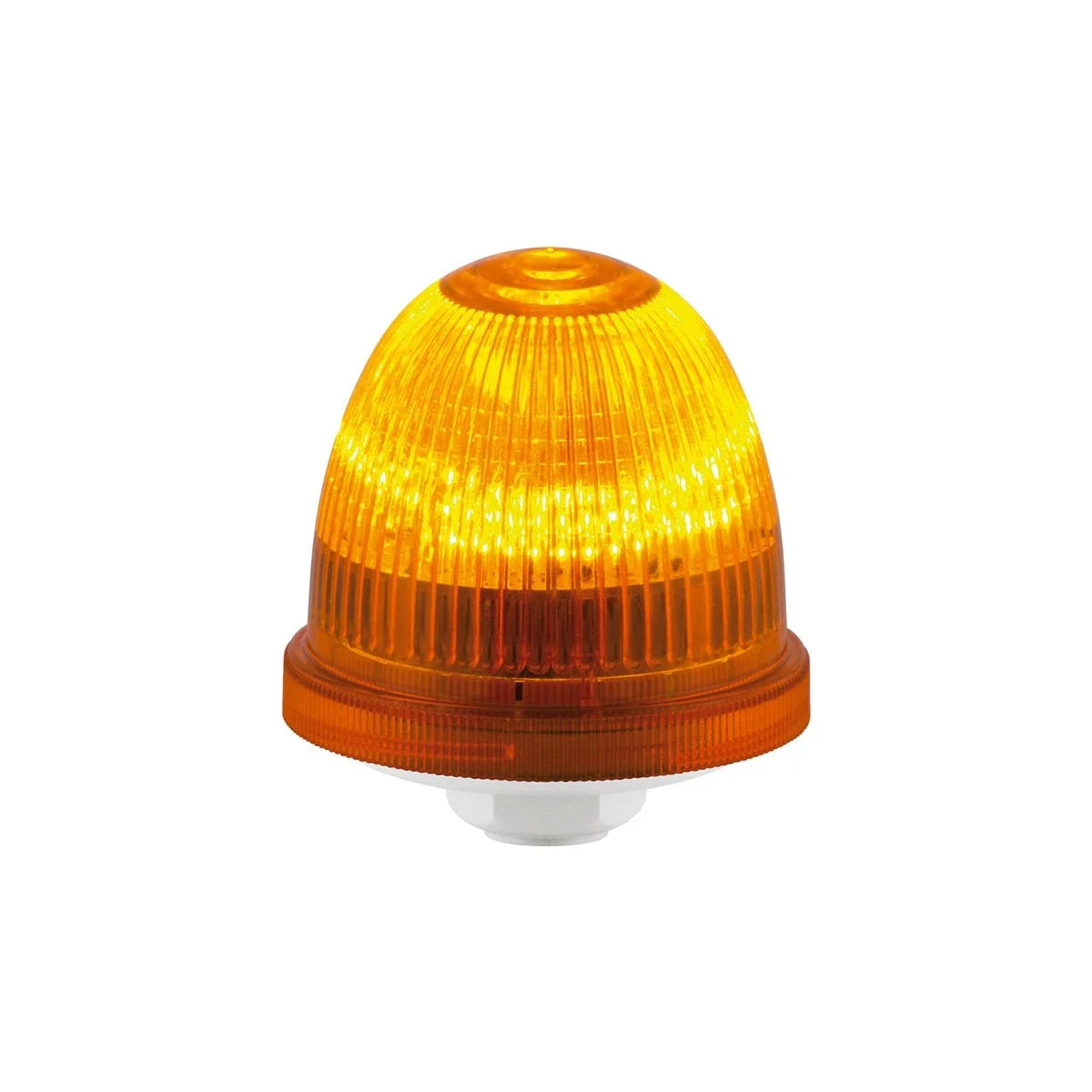

Federal Signal - LP22LED-012-024A
Model LP22LED is a multi-pattern LED light ideal for applications requiring low profile signaling. The unit can be surface, panel or 1/2” NPT pipe mounted through the integrated pipe mount. The enclosure offers a self-extinguishing polycarbonate housing that protects against vibrations, dust, and atmospheric elements, and is rated Type 4X.
The LP22LED has four flash patterns (steady light, single flash, double flash and triple flash) selectable via DIP switch.
Features
- Available in 12-24 Vac/dc and 90-240 Vac
- 1/2-inch NPT pipe, surface or panel mount
- Four flash patterns
- Five lamp/lens colors: Amber, Blue, Clear, Green and Red
- Self-extinguishing polycarbonate housing
- Type 4X, IP66 Enclosure
- CE and UKCA compliant
- UL and cUL Listed
Additional Information
Enclosure Rating ProdType 4X, IP66
Environmental Rating ProdOrdinary Location
Flash Pattern1x Flash,2X Flash,3x Flash,or Steady
Flashes Per Minute120, 90 FPM, 140 FPM, Steady
Lamp Life Hours50000.0
Lens Color Variant0
Operating Voltage Variant12-24VAC/DC
Shipping Weight Kg0.18
Shipping Weight Lbs0.6
Visual Signals X Lens Color Variant0
Visual Signals X Operating Voltage Variant1
Weight0.22
Weight Kg0.1
