category:
Audible Signals
country_of_origin:
US
manufacturer:
Federal Signal
mpn:
PM22A-012-024-Q
subcategory:
Sounders
upc:
782979251873
Product Description

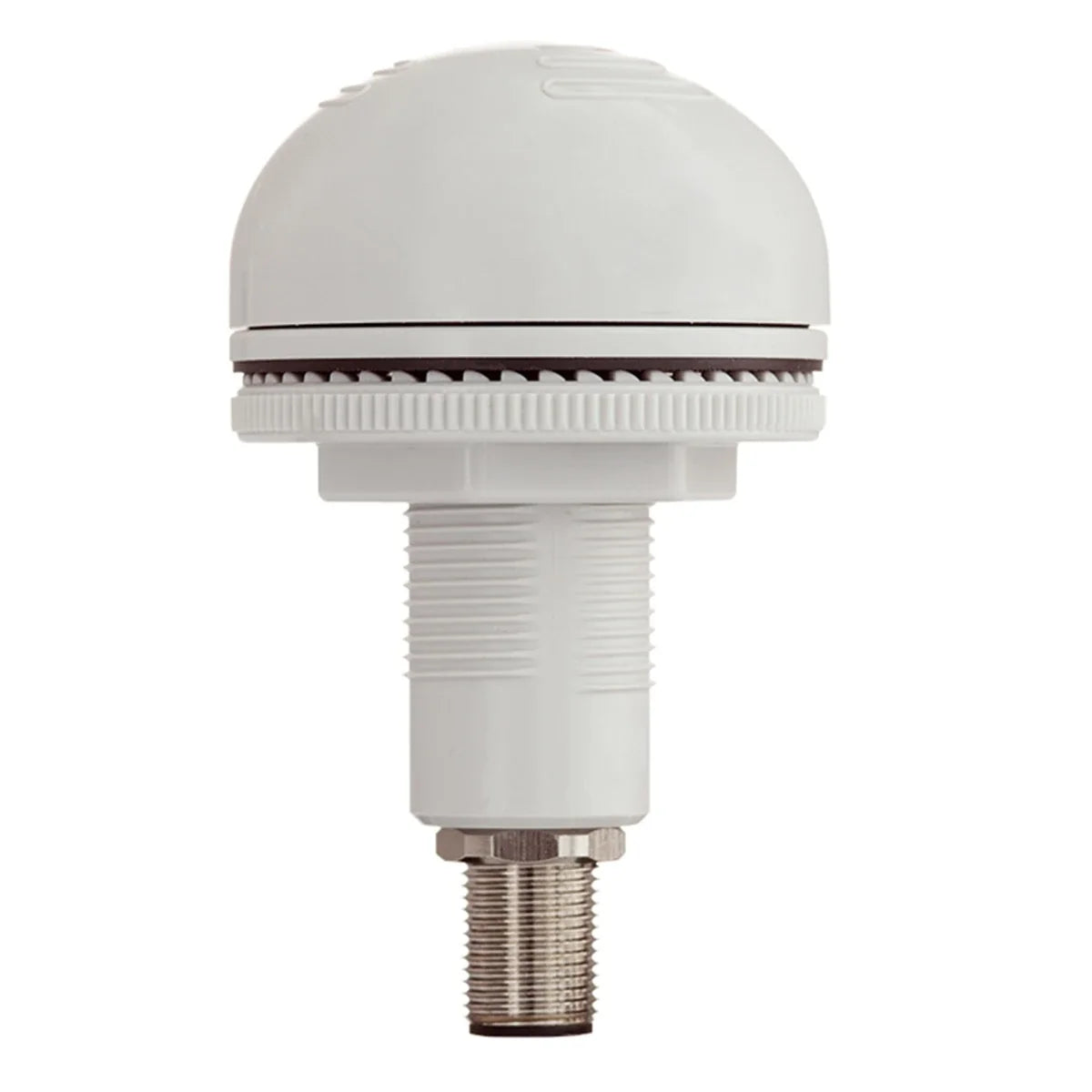

Federal Signal - PM22A-012-024-Q
Model PM22A is a multifunctional piezoelectric sounder and offers seven different tones, controllable via independent electric contacts. It is available in two electrical connection options: M12 cable gland with 12" (300 mm) leads or M12 4-pin Quick Connect (-Q models).
The PM22 Series is panel mounted through a 22 mm/0.87" hole and secured with the provided locking ring. It offers a self-extinguishing polycarbonate body that protects against vibrations, dust, and other atmospheric elements.
Features
- Available in 12-24VAC/DC
- 7 tones include: steady, slow intermittent, fast intermittent, 2x intermittent, 3x intermittent, telegraph, and random
- Choice of M12 cable gland or M12 4-pin quick connect (-Q models) electrical connections
- Type 3R, IP65 enclosure
- CE Certified
- UL and cUL Listed
Additional Information
Enclosure Rating ProdType 3R, IP65
Environmental Rating ProdOrdinary Location
Shipping Weight Kg0.07
Shipping Weight Lbs0.5
Weight0.15
Weight Kg0.07
