category:
Visual Signals
country_of_origin:
US
manufacturer:
Federal Signal
mpn:
PM22C-024RGB-Q
subcategory:
Audible / Visual Signals
type:
Panel Mount Signals
upc:
782979252115
Product Description

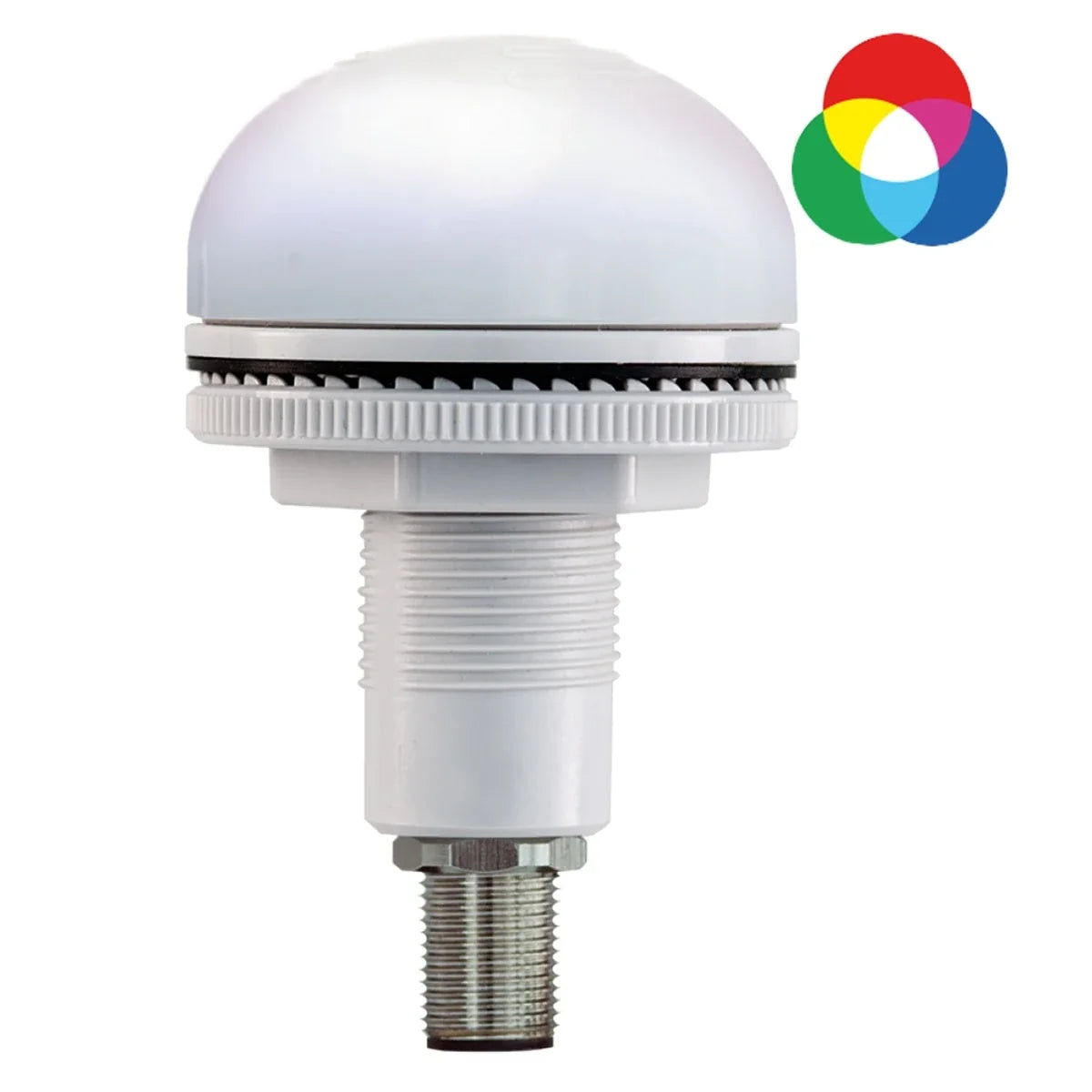

Federal Signal - PM22C-024RGB-Q
Model PM22C RGB is a steady, multicolor panel mount LED and piezoelectric sounder combination. The model offers seven color options combined with a continuous tone, within the same unit.
Model PM22C RGB is available in 24VDC and two electrical connection options: M12 Cable Gland with 12" (300 mm) leads or M12 4-Pin Quick Connect (-Q). It is panel mounted through a 22 mm/0.87" hole and secured with the provided locking ring.
The PM22 Series offers a self-extinguishing polycarbonate body that protects against vibrations, dust and other atmospheric elements.
Features
- Available in 24 Vdc
- Multicolor LED produces Blue, Clear, Cyan, Green, Magenta, Red and Yellow
- Steady light effect and continuous tone combination
- Choice of M12 cable gland or M12 4-pin quick connect (-Q models) electrical connections
- 50,000-hour LED
- Opaque polycarbonate lens
- Type 3R, IP65 enclosure
- CE and UKCA compliant
- UL and cUL Listed
Additional Information
Enclosure Rating ProdType 3R, IP65
Environmental Rating ProdOrdinary Location
Lamp Life Hours50000.0
Shipping Weight Kg0.07
Shipping Weight Lbs0.5
Weight0.09
Weight Kg0.04
