category:
Visual Signals
country_of_origin:
US
manufacturer:
Federal Signal
mpn:
PM22L-024RGB-Q
subcategory:
Panel Mount Signals
upc:
782979252092
Product Description

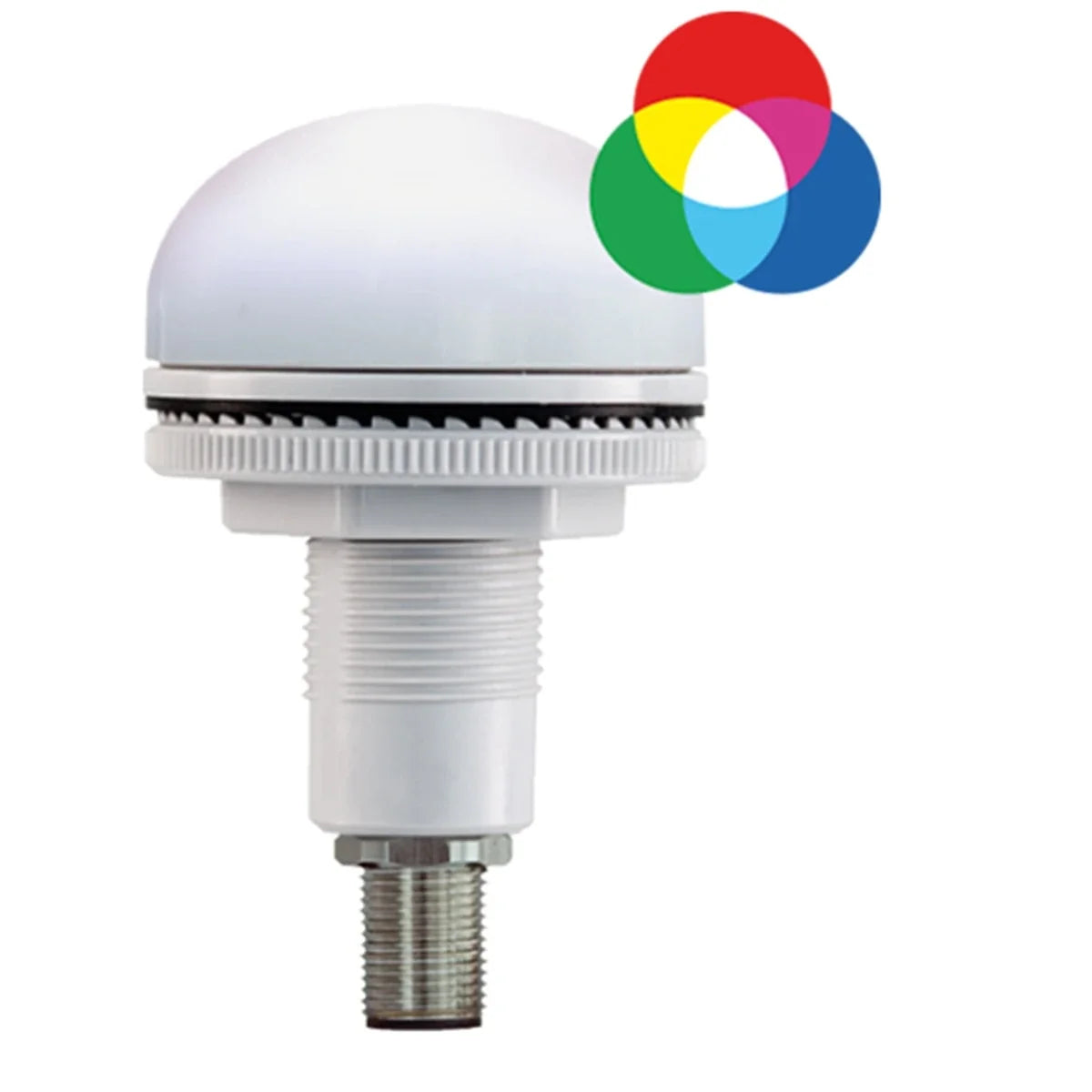

Federal Signal - PM22L-024RGB-Q
Model PM22L RGB is a steady, multicolor panel mount LED that offers seven color options within the same unit. It is available in 24VDC and two electrical connection options: M12 Cable Gland with 12" (300 mm) leads or M12 4-Pin Quick Connect (-Q models).
The PM22 Series is panel mounted through a 22 mm/0.87" hole and secured with the provided locking ring. It offers a self-extinguishing polycarbonate body that protects against vibrations, dust and other atmospheric elements.
Features
- Available in 24 Vdc
- Multicolor LED produces Blue, Clear, Cyan, Green, Magenta, Red and Yellow
- Steady light effect
- Choice of M12 cable gland or M12 4-pin quick connect (-Q models) electrical connections
- 50,000-hour LED
- Opaque, polycarbonate lens
- Type 4X, IP66 enclosure
- IP69K compliant
- CE and UKCA compliant
- UL and cUL Listed
Additional Information
Enclosure Rating ProdType 4X, IP66, IP69K
Environmental Rating ProdOrdinary Location
Lamp Life Hours50000.0
Shipping Weight Kg0.07
Shipping Weight Lbs0.5
Weight0.09
Weight Kg0.04
