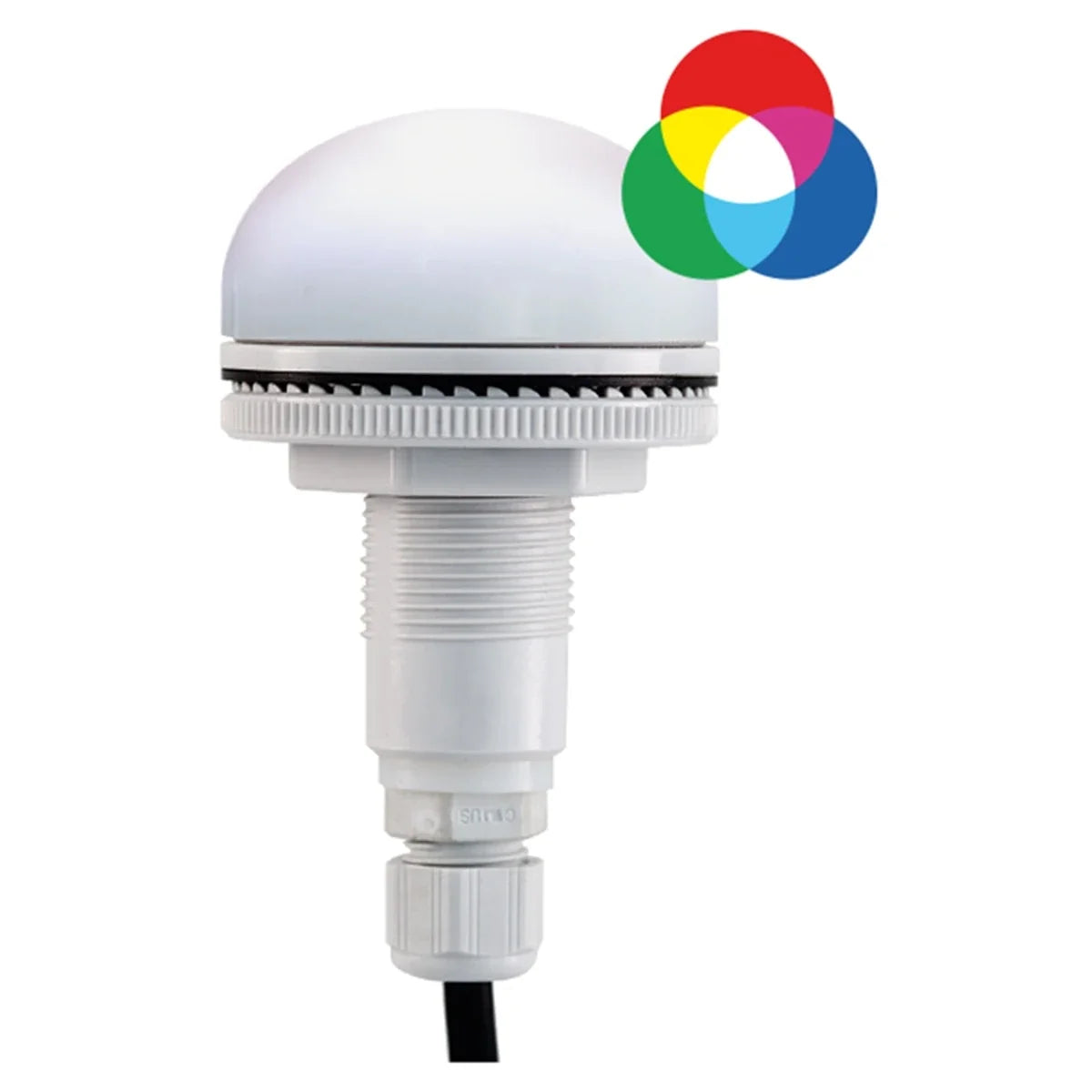

Federal Signal PM22L-024RGB RGB Panel Mount 22mm Multicolor LEDs, Multicolor

Federal Signal PM22L-024RGB RGB Panel Mount 22mm Multicolor LEDs, Multicolor

Dropship

SKU SKU:kpi260-PM22L-024RGB

GTIN : 782979252085

MPN : PM22L-024RGB

Regular price $160.59 USD
Regular price Sale price $160.59 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Federal Signal - PM22L-024RGB

Model PM22L RGB is a steady, multicolor panel mount LED that offers seven color options within the same unit. It is available in 24VDC and two electrical connection options: M12 Cable Gland with 12" (300 mm) leads or M12 4-Pin Quick Connect (-Q models).

The PM22 Series is panel mounted through a 22 mm/0.87" hole and secured with the provided locking ring. It offers a self-extinguishing polycarbonate body that protects against vibrations, dust and other atmospheric elements.

Features

  • Available in 24 Vdc
  • Multicolor LED produces Blue, Clear, Cyan, Green, Magenta, Red and Yellow
  • Steady light effect
  • Choice of M12 cable gland or M12 4-pin quick connect (-Q models) electrical connections
  • 50,000-hour LED
  • Opaque, polycarbonate lens
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • CE and UKCA compliant
  • UL and cUL Listed

Additional Information

Enclosure Rating ProdType 4X, IP66, IP69K
Environmental Rating ProdOrdinary Location
Lamp Life Hours50000.0
Shipping Weight Kg0.07
Shipping Weight Lbs0.5
Weight0.09
Weight Kg0.04
CategoryVisual Signals
Country of originUS
ManufacturerFederal Signal
MpnPM22L-024RGB
SubcategoryPanel Mount Signals
Upc782979252085
