category:
Fan & Limit Controls
manufacturer:
White Rodgers
mpn:
097782
subcategory:
Fan Speed Control
Product Description

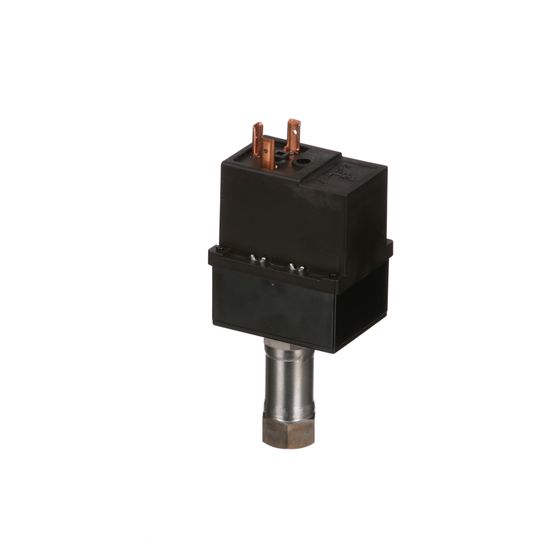

White Rodgers - 097782 The FSY Fan Speed Control controls the head pressure in air- cooled condensers by reducing the fan speed to maintain head pressure as the outside temperatures/condenser pressure drops. As the motor speed drops under lower ambient/load condition fan noise is also reduced. The FSY is designed for use with permanent split capacitor and shaded pole fan motors, approved for use by motor/equipment manufacturers for variable voltage, phase angle (triac) speed control.
Features:
- Connector includes 2 m. cable installed (FSF and FSO)
- Connector turnable (in 90° steps)
- Compact Design
- State-of-the-Art Electronics
- Direct mount?Easily retrofit to suitable motor
- Low Pressure ?Turn Off Operation
- Adjustable Pressure Setting
- Multiple FSX controls can be used in parallel on multi- circuit condensers
- 2 Cable types: FSF-N15 with internal circuit design to comply with EC-Directive 89/336/EC (Electromagnetic compatibility requirements for Europe) FSO-N15, standard with internal voltage spike and over current protection
Additional Information
Weight3.5 ounces
Voltage230 Vac + 15-20%.
Temperature RangeStorage and Transportation 30°C to 70°C, Ambient Operating Temperature -20°C to 55°C, Medium Temperature -20°C to 70°C
ConnectorsS (1/4 SAE Female, 7/16 -20 UNF with Schrader Depressor)
Enclosure TypeProvide enclosure to protect from direct rain, sunlight and external damage
Nominal current0.1 to 4 A max up to 104°F (40°C) + 0.1 to 2.5 A max up to 140°F (60°C) + Starting current: max. 8 A
Current Rating4 (4 Amps Maximum at 104°F Ambient Operating Temperature)
Adjustable Range (psig)230 Vac + 15-20%.
ModulatingBand (psig)66
Factory Setting (psig)233
