Product Description

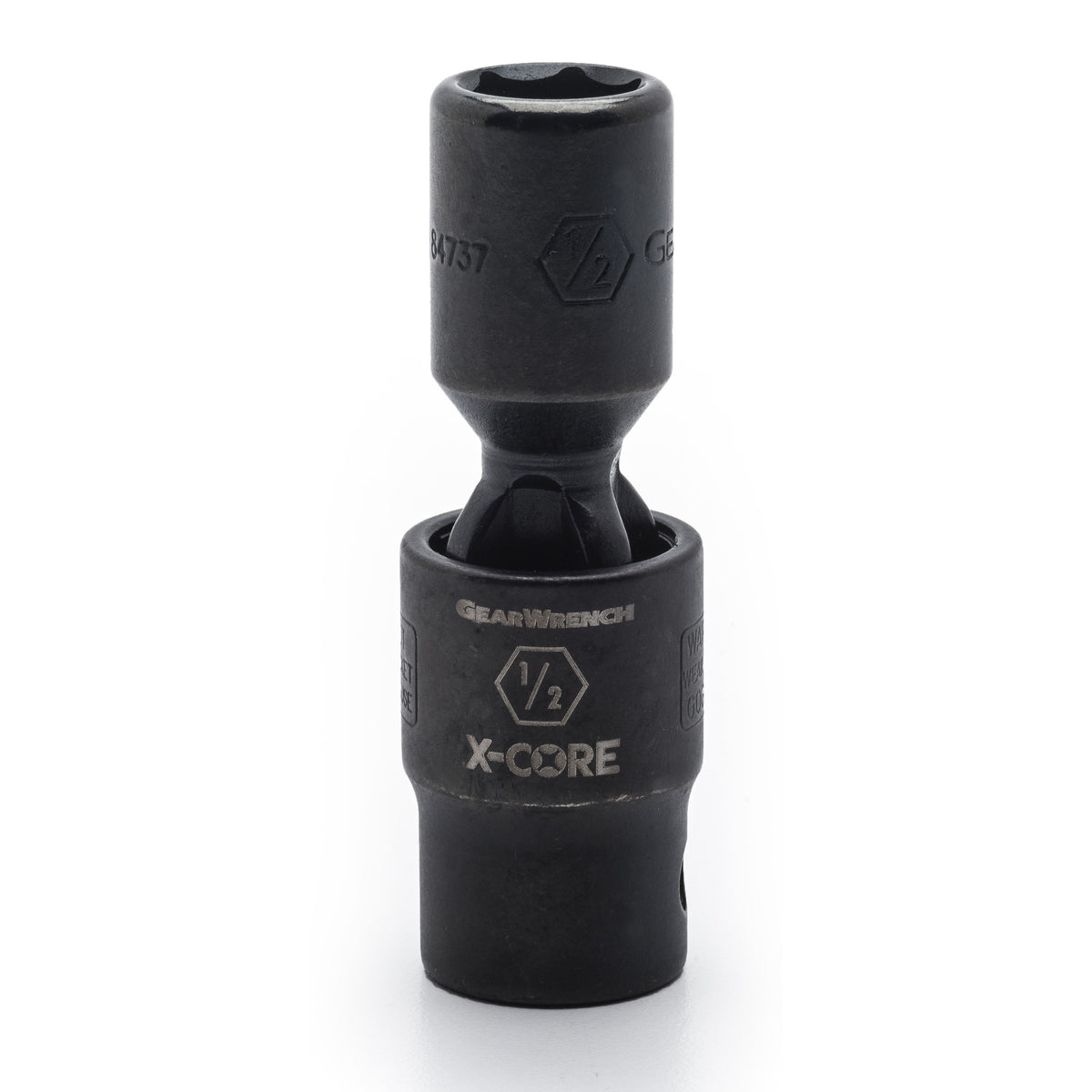

Compared to even the best pinned impacts, X-CORE™ Pinless impact tools deliver far greater durability and superior access. The exclusive four-lug ball-and-socket design of these GEARWRENCH universal-joints, sockets, and extensions provides the long-lasting strength and capability needed to take on the toughest automotive and industrial applications. When durability is key, the choice is clear. GEARWRENCH X-CORE™ PINLESS.
Features- X-Core™ pinless joint design is 4x more durable than pinned products for increased strength
- 30° maximum operating flex angle
- Smooth 360° rotation for easier access
- Off-corner loading reduces fastener rounding
- Chrome molybdenum alloy steel (Cr-Mo) for exceptional strength and durability
- Black oxide finish to resist corrosion
- High-visibility laser etched markings provide quick size identification
- Meets or exceeds ASME specifications
- Weight (Catalog) - 0.510 lb
- Warranty - Full Lifetime
- Drive Tang Size - 1/2 in
- Size Range (SAE) - 1/16 in - 1/2 in
- Family Name - X-Core™
- Type - Universal Joint Socket
- Overall Length - 2.807 in
- Size - 1/2 in
- Locking - No
- Magnetic - No
- SAE/Metric/Torx - SAE
- UPC - 099575847370
- Prop 65 - No Warning
- Material - Chrome-Molybdenum (Cr-Mo)
- Length Format - Standard
- Finish - Black Oxide
- ASME Specification - Meets or Exceeds
- Dim. F - Length to Shoulder : 0.605 in
- Dim. B - Wrench End : 0.768 in
- Dim. A - Drive End : 0.988 in
- Dim. E - Wrench Depth : 0.787 in
- Packaging - Hang Tab
- Drive Type - 6 Point
