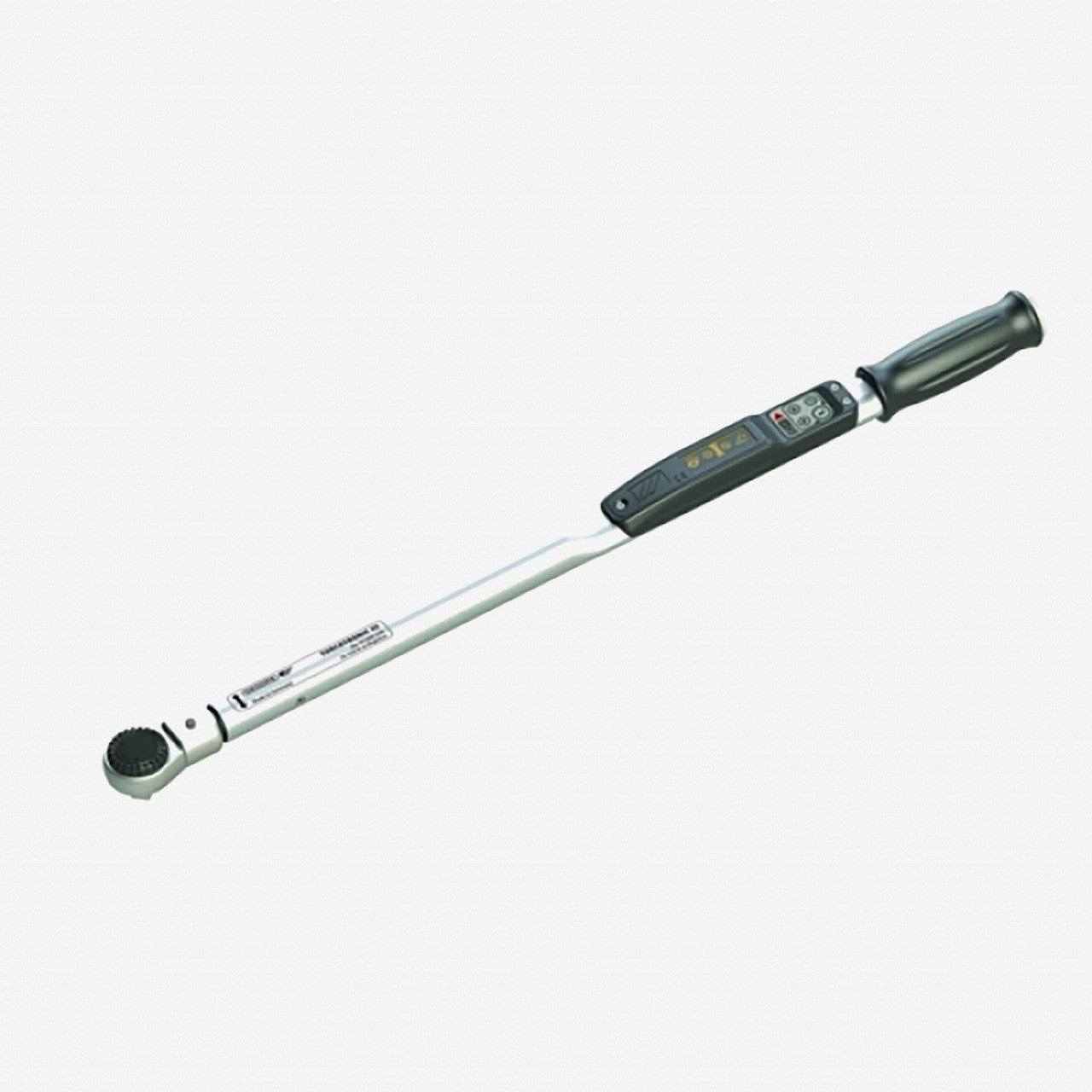

Gedore 2648636 TT3KH 120 TorcoTronic III Electronic Torque Wrench, 1/2" Drive, SE 9x12

Product Description

Gedore TT3KH 120 TorcoTronic III Electronic Torque Wrench, 1/2" Drive, SE 9x12

Use:
For everyday requirements in installation and torque control from 10 - 120 Nm (7.4 - 88.5 ft-lbs)
For use in all areas of manufacturing and development

Features:
Microprocessor-controlled, electronic torque wrench
For controlled bi-directional tightening
Certified to DIN EN ISO 6789, traceable to national standards
Robust workshop design
Broad measurement range in Nm can be switched to ft-lbs
With 1/2" reversible ratchet insert - the ratchet is exchangeable, providing the option of using a 9x12 mm (TT3H 120) or 14x18 mm (TT3H 350) square socket

Characteristics:
Torque and torque angle measure
5 different measuring modes
5 parameters storable
USB interface for data exchange
2000 storage places
Measurement accuracy torque +/- 1 %, +/- 1 digit
Measurement accuracy torque angle +/- 1 %, but min. +/- 1 degree on 360 degrees with min. 4 degrees/sec
Different depth gauges for end fittings programmable
Simple to operate with easy to understand Icon-menu navigation and 4 funtcional keys
Clearly readable, illuminated LCD display
Resolution torque: 0.1 Nm
Resolution torque angle: 0.1 degrees
PC software easy to operate for uncomplicated programming and documentation of data
Data can be transferred to MS Excel
Keyboard lock
Operation with standard Mignon AA or optional rechargeable battery (NiMH)
Visual signal: 3x LED (yellow, green, red)
Acoustic signal: buzzer
TUV certified, CE and RoHS
Test certificate acc. to DIN EN ISO 6789:2003 Type I Class C
Calibration to DAkkS-DKD-R 3-7, Class 1 (on request)

Set includes:
Electronic torque wrench TorcoTronic III HighLine
Reversible ratchet head - 1/2" square drive
USB cable
Software on CD-R
Test certificate acc. to DIN EN ISO 6789:2003 Type I Class C
Delivered in a transparent plastic box with insert

Attention:
A PC, running a Windows operating system (XP or later) is required to obtain the full benefit of all the functions of this productFeatures

• Weight - 1.98 lb
