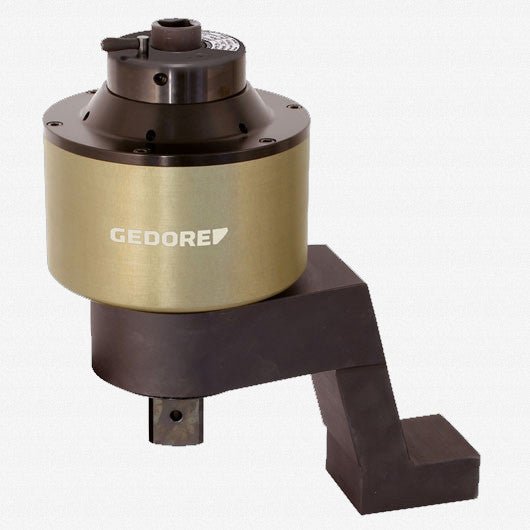

Gedore 2653141 DVV-130ZRS Torque Multiplier DREMOPLUS ALU 13000 Nm

Product Description

Features:
Mechanical hand torque multiplier for controlled screw tighetning and unloosening screw connections
With a two-stage planetary gear
High-performance aluminum housing
Torque multiplication ratio: 1:39
All models with anti-wind-up ratchet (RS)
With non-destructive "Slipper" overload safety mechanism for gear protection - clockwise and anticlockwise
Z-form, offset reaction arm depending on model of made of chrome-vanadium steel
Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm - of lightweight metal
Guaranteed accuracy: Better than +/- 3% tolerance
For operation in combination with a torque wrench
Output square with drill hole for impact sockets with safety pin and ring

Scope of delivery:
Torque Multiplier DREMOPLUS ALU
With Z-form offset reaction arm
Delivery in sturdy shipping case with foam insert
Factory test certificate and setting table
Detailed technical information is available on request

Max Output: 13,000 Nm (9,530 ft-lbs)
3/4" Square Input
1 1/2" Square OutputFeatures

• Weight - 46.08 lb
