category:
Electric Motors
height:
6.02
length:
14.06
manufacturer:
Century
mpn:
3D002
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
13.56
width:
6.04
Product Overview

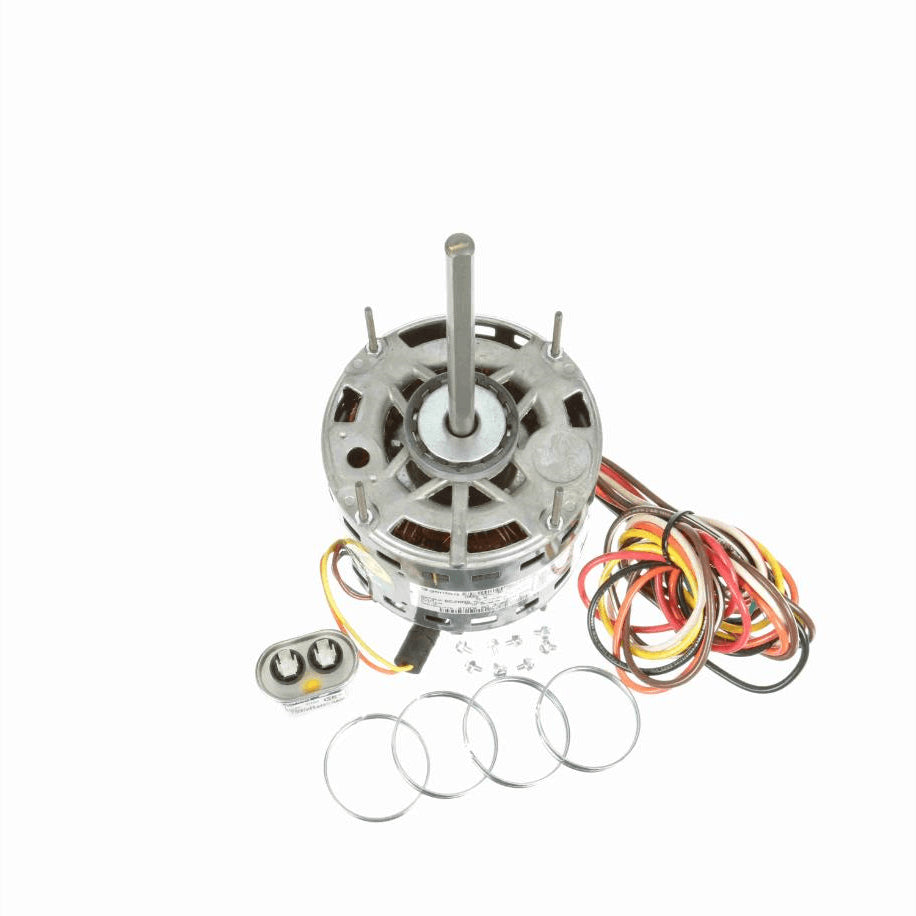

- Direct Drive Fan and Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 30" Leads
- Extended Clampbolts, Mounting Holes in shell, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current1.10 A
Number of Speeds4
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight13.56 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingRound Belly Band
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.82 in
Shaft Diameter0.500 in
Shaft Extension6.50 in
CEN
