Product Description

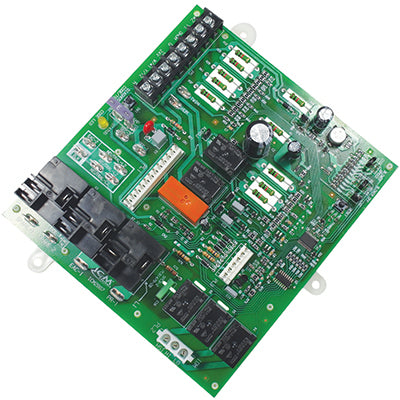

ICM - ICM2807
DETAILS:
The ICM2807 is a low cost fit, form and functional replacement for the Carrier HK42FZ017 furnace control board.
- Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
- Microprocessor-based precision
- Designed for 100% gas shutoff in case of ignition failure
- Twinning compatible with another ICM2807 control
- Reverse polarity protection
- Secondary brownout voltage protection
- Compatible with 24 VAC standard thermostat
- Continuous Blower Speed Jumper
- Limit Switch Lockout Time
- Limit Switch Lockout After Power Interruption
- Self-Diagnostics
- Provides diagnostic
WEIGHT/DIMENSIONS:
- Weight: 1
- Height: 1.5
- Width: 6.5
- Length: 7
SPECIFICATIONS:
Ambient Temperature
Operating: -40‚°F to 176‚°F
Humidity: 5% to 95% R.H. (non-condensing) @ +55‚°F
Voltage Range: Line (98 to 132 VAC) @ 60Hz
Ignitor: 5A @ 120 VAC
Cool Blower: 10 HP, 120 VAC
Low Heat: 5A, 1/2 HP, 120 VAC
High Heat: 10A, 1 HP, 120 VAC
Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
Gas Valve: 1.5A @ 30 VAC
EAC: 1A@120 VAC
Humidifier: 0.5A 24 VAC
