Product Description

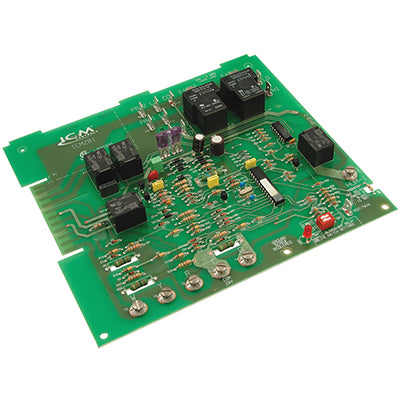

ICM - ICM281
DETAILS:
- Low cost form, fit and functional replacement for Carrier CES0110020, CES0110048 and CES0110057-xx series, control boards.
- Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
- Microprocessor-based for precise timing
- Functions with all 24 VAC thermostats
- Designed for 100% gas shutoff in case of ignition failure
- Twinning compatible with another ICM281 board
- Reverse polarity protection
- Secondary brownout voltage protection
- Diagnostic fault codes (blinking LED) for simple troubleshooting
WEIGHT/DIMENSIONS:
- Weight: 0.6
- Height: 0.75
- Width: 8.5
- Length: 7.625
SPECIFICATIONS:
Line Voltage Range: 98 to 132 VAC @ 60Hz
Ignitor: 5A @ 120 VAC
Cool Blower: 30A, 2 HP, 240 VAC
Heat: 5A, 1/2 HP, 240 VAC
Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
Gas Valve: 1.5A @ 30 VAC
