availability:
In stock
category:
Furnace Control Boards
country_of_origin:
US
custom_label_2:
in-stock
manufacturer:
ICM
mpn:
ICM2812-KIT
subcategory:
Universal
Product Description

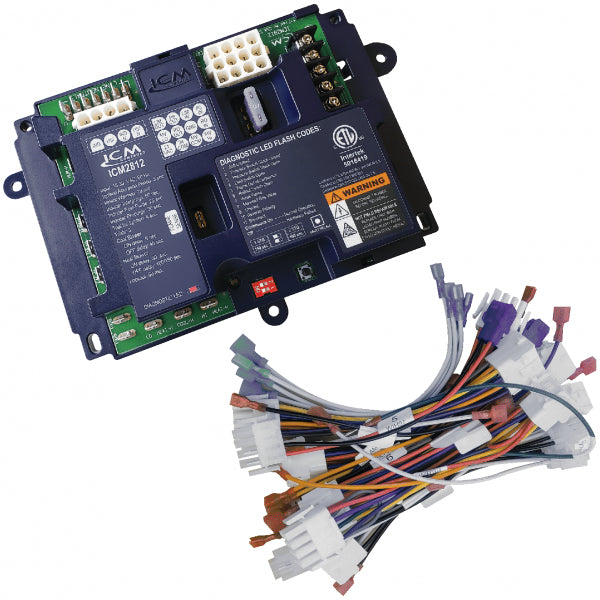

ICM - ICM2812-KIT
Features :-
The ICM2812-KIT is a universal replacement board that comes packaged with a series of cable harnesses that make it a replacement for the White-Rodgers 50M56U-843 and more than 200 other popular part numbers! See the full cross reference information in the replaces section below.
- Hot Surface Ignition (HSI) control board
- Microprocessor-based
- Monitors timing, trial for ignition, system switches, flame sensing and lockout.
- 100% lockout safety feature
- Compatible with LP or Natural Gas
- LED indication for status and fault codes to aid in troubleshooting
WEIGHT/DIMENSIONS:
Weight: 1 lb.
Length: 5.125
Width: 7.0
Height: 1.25
Specifications:-
Electrical
- Control voltage: 24 VAC (18-30 VAC)
- Line voltage: 120 VAC
- Operating temperature: -40Ëšto 175ËšF (-40Ëšto 80ËšC)
- HSI Hot Surface Ignitor: 6 amp @ 120 VAC
- Gas Valve: 1.5 amp @ 24 VAC
- Inducer draft motor: 2.2 FLA @120 VAC
- Blower motor: 14.5 FLA @ 120 VAC
Environmental
- Operating Temp Range: -40° to 176°F (-40° to 80°C)
- Humidity Range: 5 to 95% relative humidity (non-condensing)
