Product Description

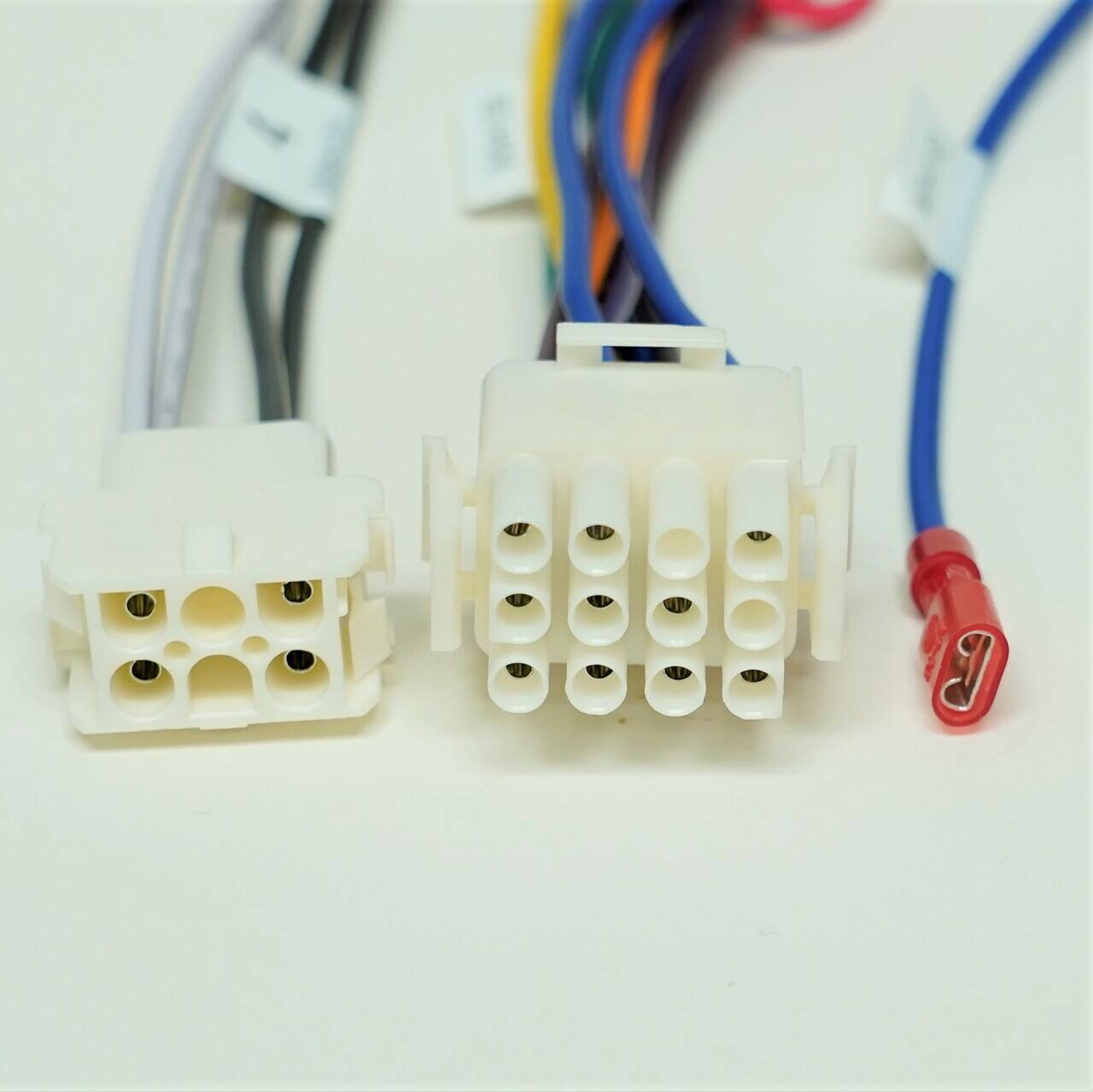

ICM - ICM2813
The ICM2813 is a form, fit, and functional replacement for the Lennox SureLight(r) Series Boards and White Rodgers equivalent. The ICM2813 automated gas ignition control board monitors the ignition sequence including the inducer, pressure switch, hot surface igniter, gas valve, flame sense, and circulating blower while maintaining full safety circuit monitoring including the high limit switch, roll out switch and auxiliary limit switch circuits. Onboard diagnostics will indicate when a fault condition exists.
DETAILS:
- Controls the gas valve, inducer draft motor, circulating blower and hot surface ignitor
- Monitors system pressure and limit switches
- Microprocessor based precision
- Diagnostic LEDs aid in testing and trouble shooting
WEIGHT/DIMENSIONS:
Weight: 0.5
SPECIFICATIONS:
Electrical
- Electrical Rating @ 77°F (25°C)
- Input Voltage: 18-30 VAC 50/60 Hz maximum
- Igniter Current: 2.0 amp @ 80 VAC 50/60 Hz (resistive)
- Inducer Relay: 2.2 FLA3.5 LRA @ 120 VAC
- Blower Relay: 14.5 FLA25.0 LRA @ 120 VAC (2spdH/C)
- Gas Valve Relay: 1.5 amp @ 25 VAC 50/60 Hz 0.6 pf
Environmental
- Operating Temp Range: -40° to 176°F (-40° to 80°C)
- Humidity Range: 5 to 95% relative humidity (non-condensing)
