category:
Furnace Control Boards
country_of_origin:
US
manufacturer:
ICM
mpn:
ICM2916
subcategory:
Trane Replacement Furnace Boards
Product Description

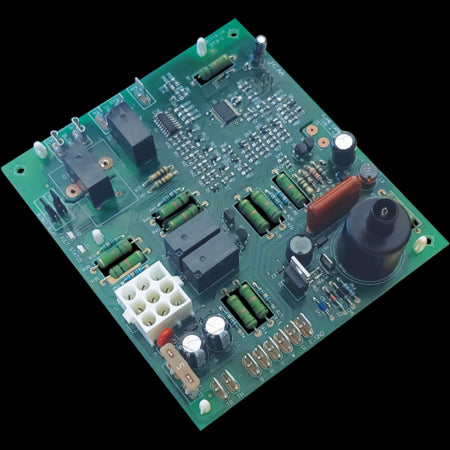

ICM - ICM2916
DETAILS:
The ICM2916 is a form, fit, and functional replacement for Trane Spark Ignition Control: D674712P02 shown in the cross-reference section of this guide. The control boards are designed as automated gas ignition controls that monitor the ignition sequence including the inducer, pressure switch, spark ignition, gas valve, flame sense, and circulating blower while maintaining full safety circuit monitoring including the high limit switch, roll out switch and auxiliary limit switch circuits.
- Controls blower motors, gas valve, spark ignitor in sequence
- Protects against short cycling
- Selectable Heat/Cool blower off-delay time
- Flash codes from the onboard LED indicate specific problems for easier troubleshooting
WEIGHT/DIMENSIONS:
Weight: 0.38
Dimensions: 5.5L x 4.75W x 1.5H
Additional Information
Line voltage230 VAC
Line frequency50/60 Hz
Control voltage18-30 VAC
Circulating blower4FLA @ 277 VAC
Hi-efficiency blower10 mA @ 24 VAC
Inducer blower0.7 FLA, 1.5 LRA @ 240 V
Combined gas valve load1.5 A @ 24 VAC
Minimum flame signal threshold0.75 uA
