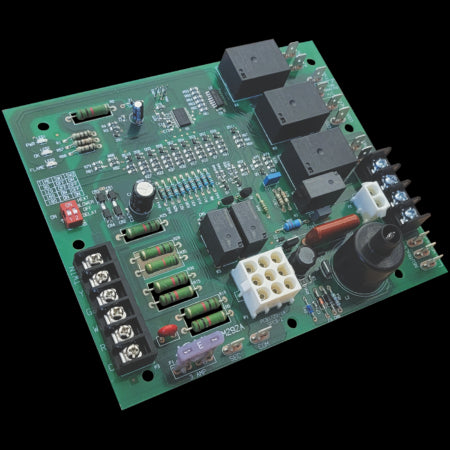

ICM - ICM292A
DETAILS:
- Low cost form, fit and functional replacement for Rheem: 62-24140-04
- Direct Spark Ignition (DSI) control
- Microprocessor-based
- Controls induced draft and indoor blower motor; humidifier output, spark ignitor and gas valve
- Monitors timing, trial for ignition, flame sensing and lockout
- 100% lockout safety feature
- Compatible with LP or natural gas
- Status LEDs for fault codes to aid in troubleshooting
WEIGHT/DIMENSIONS:
- Weight: 0.6
- Height: 2.25
- Width: 6.60
- Length: 5.75
SPECIFICATIONS:
– Operating temp: -40°F to 176°F (-40°C to 75°C)
Timing:
Pre-purge: 30 seconds
Trial for ignition: 7 seconds
Retries: Two groups of two, 30 seconds delay within the group and 3 minutes delay between groups
Lockout: 1 hour
Post-purge: 90, 120, 160 and 180 seconds
Inputs:
Power: 24 VAC and COM
Thermostat interface: R, W, Y and G
System switches: Vent pressure and limit switches (main and over-temperature switches in series)
Flame Sensing
Heat blower OFF delay: SW1 toggle switch
Outputs:
Gas Valve: 3A Pilot Duty @ 120 VAC
Draft Inducer Motor: 3A max., 1/6HP @ 125 VAC
Cool Blower: 16A max., 1/2HP @ 277 VAC
Heat Blower: 14A max., 1/2HP @ 277 VAC
Circulating Fan:12A max., 1 HP @ 125 VAC
Heat/Cool Fan: 10 A max., 1/2 HP @ 277 VAC
Electronic Air Cleaner: 10 A max., 1HP @ 125 VAC
Humidifier: 11 A max., 1/6HP @ 125 VAC
LED Indicators:
Power, green LED: PWR
Status, green LED: OK
Flame status, yellow LED: FLAME
