Product Description

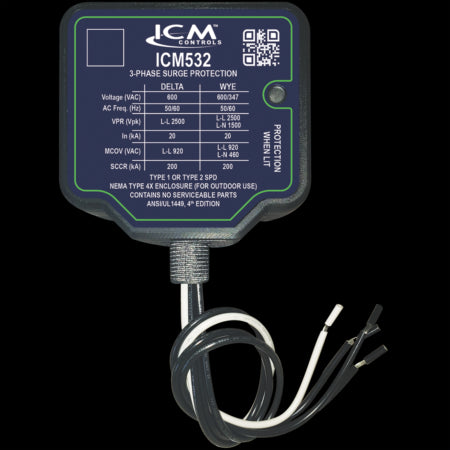

ICM - ICM532
DETAILS:
3-Phase Surge Protective Device, 600VAC (Delta) or 347/600VAC (Wye)
- Delta or Wye Configuration
- NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
- Green LED indicates surge protection present
- Easily connects to electrical panel or disconnect for indoor and outdoor applications
- UL Listed Type 1 or Type 2 SPD
WEIGHT/DIMENSIONS:
4.30 x 4.10 x 2.30
SPECIFICATIONS:
Service Voltage (3-Phase): 600 VAC Delta or 347/600 VAC Wye
Short Circuit Current Rating (SCCR): 200 kA
Nominal Discharge Current (In): 20kA
Maximum Surge Current: 150,000 amps
Protection Mode:
- 3 for Delta configuration
- 6 for Wye configuration (neutral tied to ground)
Maximum Continuous Operation Voltage (MCOV):
- L-L: 920 VAC
- L-N: (for Wye configuration only): 460 VAC
VPR:
- Delta L-L: 2500 VAC
- Wye L-L: 2500 VAC
- Wye L-N: 1500 VAC
SPD Type: Type 1 (can also be used in Type 2 applications)
Surge Protection Technology: TFMOV
Input Power Frequency: 50/60 Hz
