Product Description

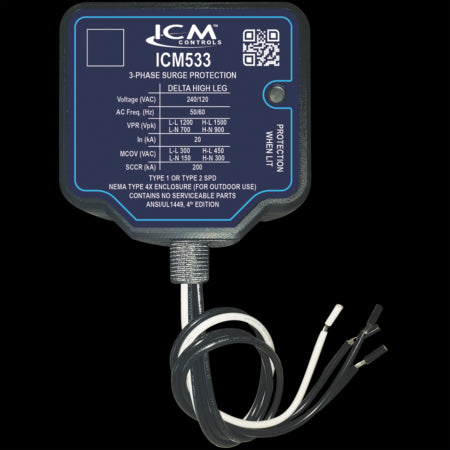

ICM - ICM533
DETAILS:
3-Phase Surge Protective Device, (Delta) High-Leg 120/240 VAC
- Delta High-Leg Configuration
- NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
- Green LED indicates surge protection present
- Easily connects to electrical panel or disconnect for indoor and outdoor applications
- UL Listed Type 1 or Type 2 SPD
WEIGHT/DIMENSIONS:
4.30 x 4.10 x 2.30
SPECIFICATIONS:
Service Voltage (3-Phase): 120/240 VAC Delta High-Leg
Short Circuit Current Rating (SCCR): 200 kA
Maximum Surge Current: 150,000 amps
Nominal Discharge Current (In): 20kA
Protection Mode: 3 for Delta configuration
Maximum Continuous Operation Voltage (MCOV):
- L-L: 300 VAC
- H-L: 450 VAC
- L-N: 150 VAC
- H-N: 300 VAC
VPR:
- L-L: 1200 VAC
- H-L: 1500 VAC
- L-N: 700 VAC
- H-N: 900 VAC
SPD Type: Type 1 (can also be used in Type 2 applications)
Surge Protection Technology: TFMOV
Input Power Frequency: 50/60 Hz
