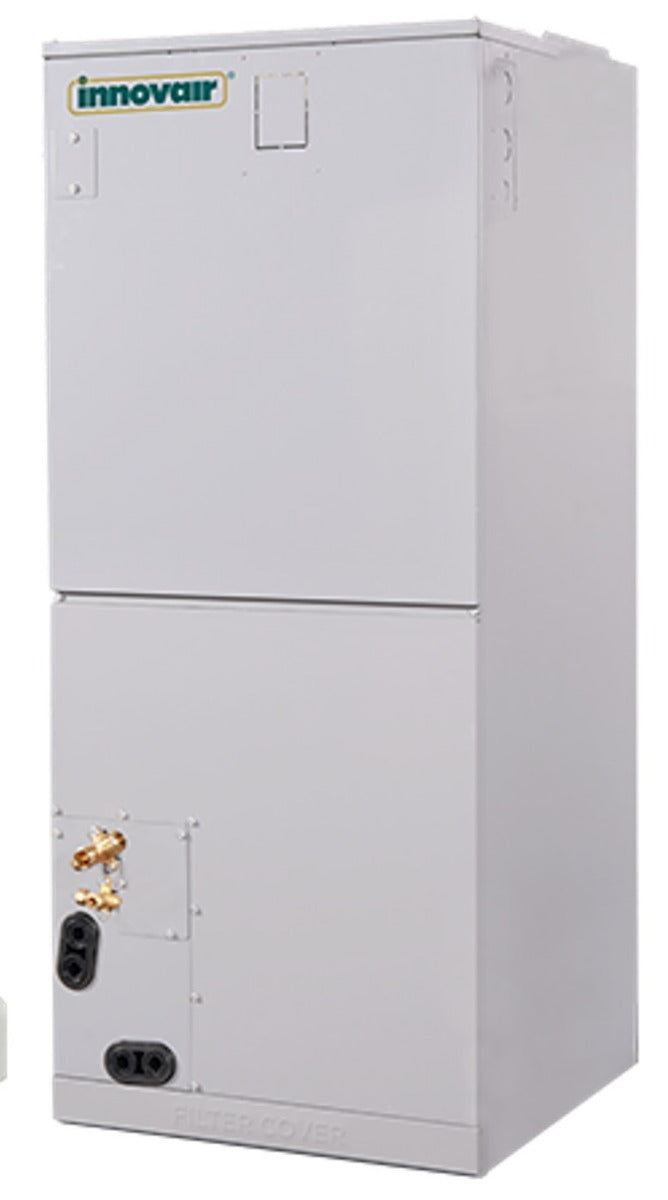

Innovair DEV60H2R19 Slim24 Ducted Indoor Air handler 18 Seer 208/230V (60000 BTU)

Innovair DEV60H2R19 Slim24 Ducted Indoor Air handler 18 Seer 208/230V (60000 BTU)

In Stock - 2 (Available by Fri, Dec 20 - Tue, Dec 24)

SKU SKU:kpi038-DEV60H2R19

Regular price $1,590.00 USD
Regular price Sale price $1,590.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
availability: In stock
capacity: 60000 BTU
class: 60K 18 SEER HP Air Handler Unit
custom_label_2: in-stock
depth: 24
height: 53
manufacturer: Innovair
mpn: DEV60H2R19
seer: 18
volts: 208~230V-1Ph-60Hz
weight: 163
width: 21

Product Description

Innovair - DEV60H2R19 Removal of only 1 panel for access to electrical heating kit. Easy and effortless access to take out the fan assembly for quicker maintenance.Only 2 integrated control boards with simple wiring. One main control board and one function board for 24V thermostat, dip switch, and error code display.Evaporator coil can be easily pulled out and configured according to the need of multiple position installation.Latest inverter technology for higher performance and efficient performance.

Quieter operation than traditional systems with longer reliability.Can be installed with Innovair's matching air handler or most other brand air handlers and coils for replacement systems. Compatible with most 24V thermostats.Gold fin condensers help to protect the condenser coils from external damage and thus improves the overall life of air conditioners.The slim design outdoor unit allows for a quieter and mote efficient operation compared to traditional outdoor systems.Slim design outdoor unit allows for installation with a small footprint compared to traditional condensing units.

Features :

  • Less room needed for flexible installation
  • High Efficiency Inverter Technology
  • Compatible with most 24 VAC thermostats
  • Inverter Technology delivering up to 18 SEER Rated Efficiency
  • AHRI Certified Units
  • ETL Certified
  • More resistant to oxidation and corrosion than ordinary blue fin
  • Can operate as a Heat Pump or Cooling System
  • Able to maintain cooling operation with outdoor temperatures as high as 129‚°F
  • Internal protection against irregular power
  • Ability to operate as with outdoor temperatures low as -4‚°F
  • Minimal disassembly for quicker maintenance
  • Lower dB(A) than conventional units
  • Eco Friendly refrigerant for a cleaner environment
  • System will automatically present an error code to help identify for troubleshooting
  • System will automatically present an error code to help identify for troubleshooting

Additional Information

Model NameDEV60H2R19-Indoor Model
Power supply Rated (V/Ph/Hz)208/230/1/60
Power supply Voltage range (V)187-253
Cooling Rated Capacity (range) (Btu/h)57000(4395~60200)
Cooling Input power (W)5644
Cooling Rated current (A)23.8
Cooling EER (Btu/w)10.3
Cooling SEER (Btu/w)18
Heating at 47°F Rated Capacity (range) (Btu/h)60000(11400~63100)
Heating at 47°F Input power (W)4959
Heating at 47°F Rated current (A)20.9
Heating at 47°F COP (W/W)3.55
Heating at 47°FHSPF4 (Btu/w)9.2
Heating at 47°F HSPF5 (Btu/w)7.6
Heating at 5°F(-15°C) Capacity (Btu/h)29000
Heating at 5°F(-15°C) COP (W/W)1.80
Minimum circuit ampacity (A)7/0
Max Fuse (A)15/0
Indoor fan motor Model ZKFD-750-8-1
Indoor fan motor Qty. 1
Indoor fan motor Output power (HP)1
Indoor air flow (Hi/Mi/Lo) (CFM)1582.35/1358.82/1135.29
Indoor noise level (Hi/Mi/Lo) (dBA)52.5/49/44
Eeternal Static Pressure (ESP) Rated (In. wc.)0/2
Eeternal Static Pressure (ESP) Range (In. wc.)0-0.8
Throttle type EEV for Cooling
Indoor unit Dimension (W—D—H) (inch)21 x 24 ½ x 53
Indoor unit Net weight (lbs.)163
Refrigerant piping (Liquid side/Gas side) (inch)3/8"/7/8"
Drainage water pipe diameter (inch)3/4
Connection wiring 14AWG*2 Stranded/shielded
Room temperature Cooling („‰)60~90
Room temperature Heating („‰)32~86
Application area (cooling Standard) (sq.ft)820 ~ 1195
