category:
POWER TOOLS
manufacturer:
Nasco
mpn:
403-JCM30221
subcategory:
DRILLING & FASTENING TOOLS

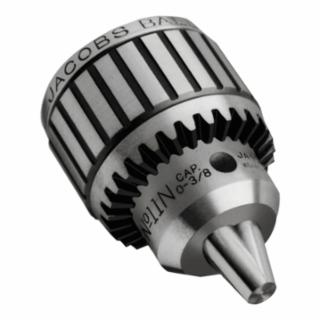

| Manufacturer Part Number | JCM30221 |
|---|---|
| GTIN | 095456002210 |
| Family | Jacobs Ball Bearing Chucks |
| Manufacturer | Apex Tool Group |
| Country of Origin | CN |
| Features | 1-piece fluted sleeve construction Ball trust bearing reduces friction in chuck closing mechansim Through-hardened sleeve teeth, nose, and keyholes for wear resistance Maximizes gripping force and drilling accuracy Treated to ensure thread life and high gripping surface hardness Jaws center-ground for absolute straightness and alignment For heavy-duty, close tolerance production drilling For production drilling equipment, jig borers, milling machines, lathes, and radials |
| Bit/Blade Mounting Size Symbol | Round |
| Capacity [Max] | 0.5 in |
| Capacity [Min] | 0.04 in |
| Chuck Size | 1/2 in |
| Finish | Nickel |
| Housing Diam | 2.44 in |
| Key Size | K3 |
| Mechanism | Key |
| Mounting | Tapered |
| Overall Length [Max] | 3.88 in |
| Overall Length [Min] | 2.97 in |
| Type | Chuck |
| Wt. | 2.44 lb |
