category:
Appliance Supplies & Parts
manufacturer:
Jones Stephens
mpn:
S04276
subcategory:
Water Supplies, Stops & Accessories
type:
Supply Lines
Product Description

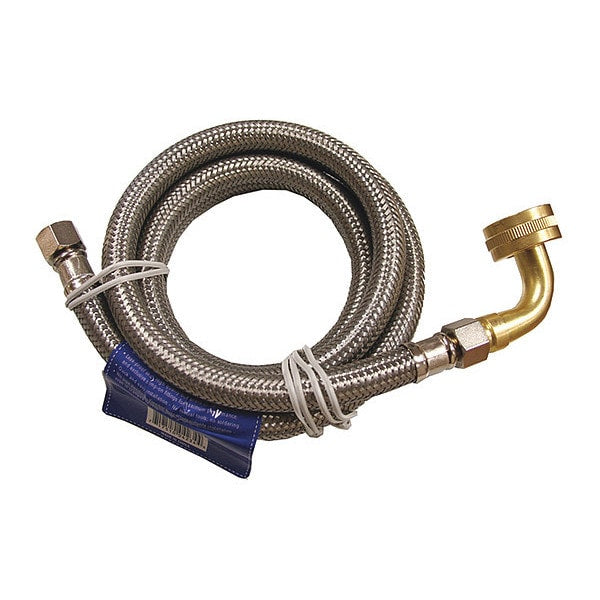

Jones Stephens - S04276 Connect your dishwasher with a garden hose connection to its water supply with Jones Stephens’ 3/8" Compression x 3/8" Compression x 72" Stainless Steel Dishwasher Connection with 3/4" Female Garden Hose Thread with 90° Elbow Fitting and 3/8” MIP 90° Elbow. This connector is used to connect Whirlpool, Maytag, Amana, Kitchen Aid and Jenn-Air dishwashers manufactured after September 2009. Installation is quick and easy with no special tools needed. Additionally, the flexible, braided stainless steel connector resists kinking and creasing. Its inner core of PVC withstands temperatures of 68°F-158°F – providing reliable, trouble-free service.
- Used to connect dishwasher to water supply
- Inner core of PVC withstands temperatures of 68°F-158°F
- Working pressure: 124 PSI
- Brass end connections
- No special tools needed
- Flexible, braided stainless steel connector resists kinking and creasing
- Use to connect Whirlpool, Maytag, Amana, Kitchen Aid and Jenn-Air dishwashers manufactured after September 2009
Additional Information
Material:Stainless Steel
Size:3/8" x 3/8"
Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Temperature Range:68°F - 158°F
Working Pressure:124 psi
Working Temperature:158°F
Approved Applications:Dishwasher
Color:Stainless Steel
Gasket Material:Santoprene
Length:72"
End Connection Material:Brass
Warranty:1 Year
AB100 Certified:N/A
CEC Listed:No
cUPC Listed:Yes
UPC Listed:Yes
End Connections:End Connections:
CompressionFGHT
ANSI Standard:ANSI Standard:
ANSI Standard:ANSI 372-2022
ANSI 61-2021: Q 0.5
ASME Standard:ASME A112.18.6-2017
CEC Compliant:No
CSA Listed:No
IAPMO Listed:Yes
Lead Law Compliant:Yes
MASS Approved:No
NSF Certified:No
NSF Standard:NSF Standard:
NSF Standard:NSF 372-2022
NSF 61-2021: Q 0.5
SDWA Compliant:Yes
HAZMAT:No
CAN Standard:CAN Standard:
CAN 372-2022CAN 61-2021: Q
