manufacturer:
Klein Tools
mpn:
93CPLG
subcategory:
Default Title
Product Description

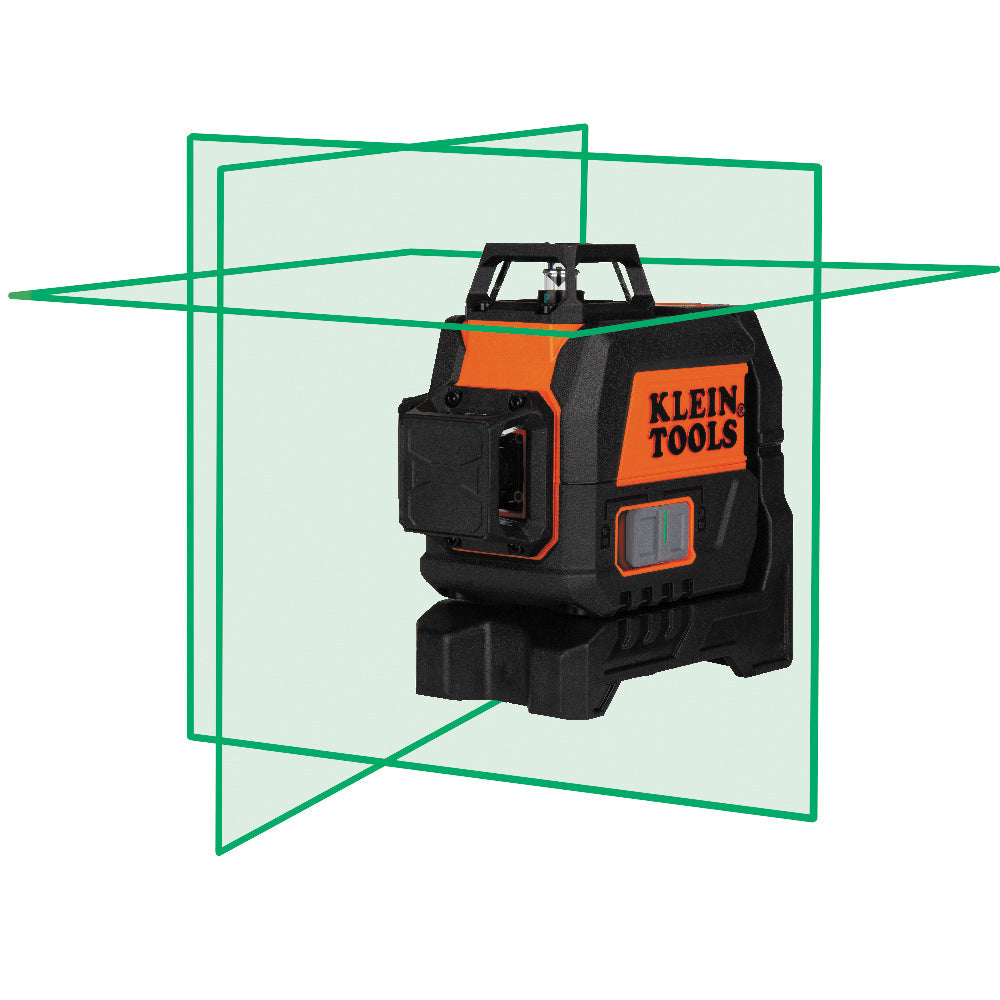

Klein Tools - 93CPLG The Klein Tools™ Compact Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications. This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power ‰¤1mW @ 508-530nm).
Features- Rechargeable Self-Leveling Green Laser Level has 3 easy-to-read bright green 360-Degree laser planes with a working range of 100 feet (30.5 m); up to 2 times brighter than regular red beams
- Compact and lightweight design with lasers in 3 planes is easy to use in tight areas and to store when not in use
- High precision laser project clean lines with accuracy of 3/16-Inch at 30 feet (9.1 m); auto out-of-level detection flashes lasers when no longer level
- Tilt mode allows for the laser level to be turned on while the pendulum is locked for use at different angles
- Magnetic mounting bracket screws into integrated 1/4-Inch tripod mount
- More than 6-Hour runtime provides lasers power for all day use
- Durable overmold design that is IP54 rated protects the laser level from water and dust
Additional Information
TypeSelf-Leveling Laser Level
ApplicationSelf-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines
Special FeaturesManual Tilt Mode, Out of Angle Notification, Battery Fuel Gauge
MaterialPC+ABS+TPE
BatteriesLithium-Ion
Laser Wavelength508-525 nm
Laser Safety21 CFR 1040.10 and 1040.11 Except for Conformance with IEC 60825-1 Ed. 3., as Described in Laser Notice No. 56, Dated May 8, 2019
Number of Beams3
Laser ColorGreen
Plumb LaserNo
Indoor Range100' (30.5 m)
Outdoor Range100' (30.5 m)
Maximum Distance100' (30.5 m)
DisplayNo
Accuracy33' (10m)
Pulse ModeNo
ReceiverNo
Magnet TypeRare Earth - Neodymium
Drop Protection3' (1 m)
Ingress ProtectionIP54 Water and Dust Resistant
Transit Locking MechanismYes
Low Battery AlarmYes
Low Battery IndicatorYes
Out-of-Level IndicatorYes
StandardComplies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019
Mounting TypeMagnetic Bracket, Tripod Mount
Bag or CaseSoft Case
IncludedLaser Level, Soft Carrying Case; Instruction Manual; Mounting Clamp
Overall Length4.2'' (10.7 cm)
Overall Height4'' (10.2 cm)
Overall Width3.2'' (8.1 cm)
Weight19.6 oz (556 g)
Battery Life6 hr
UPC092644930133
