category:
Pump Motors
manufacturer:
Marathon
mpn:
E183
Product Description

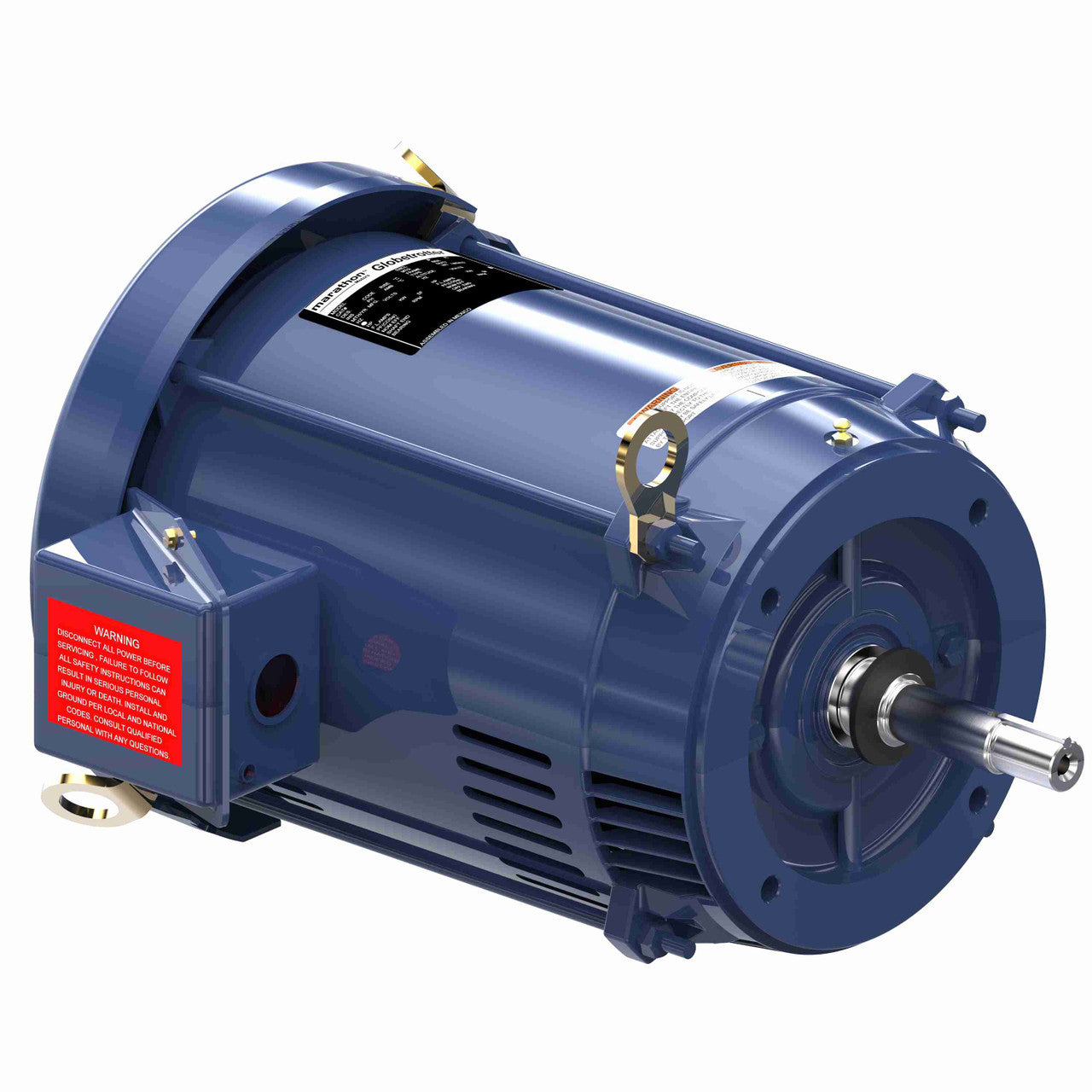

Marathon - E183A
E183A, 15 HP, 3600 RPM, 215JMV FR, 230/460 V, 3 PH, Dripproof, C-Face Footless, 215TTDWD4023
Additional Information
- Phase: 3-Phase
- Horsepower: 15 HP / 10 HP
- Output Power: 11.2 kW / 7.5 kW
- Voltage: 230/460 V / 190/380 V
- Speed: 3525 RPM / 2940 RPM
- Service Factor: 1.15
- Frame: 215JMV
- Enclosure: Drip Proof
- Thermal Protection: No Protection
- Efficiency: 91%
- Ambient Temperature: 40 °C
- Frequency: 60 Hz / 50 Hz
- Current: 36.5/18.2 A / 30/15 A
- Power Factor: 0.85
- Duty: Continuous
- Insulation Class: F
- Design Code: B
- KVA Code: G
- Drive End Bearing Size: 6309
- Opposite Drive End Bearing Size: 6206
- UL: Recognized
- CSA: Yes
- CE: Yes
- IP Code: 12
- Number of Speeds: 1
