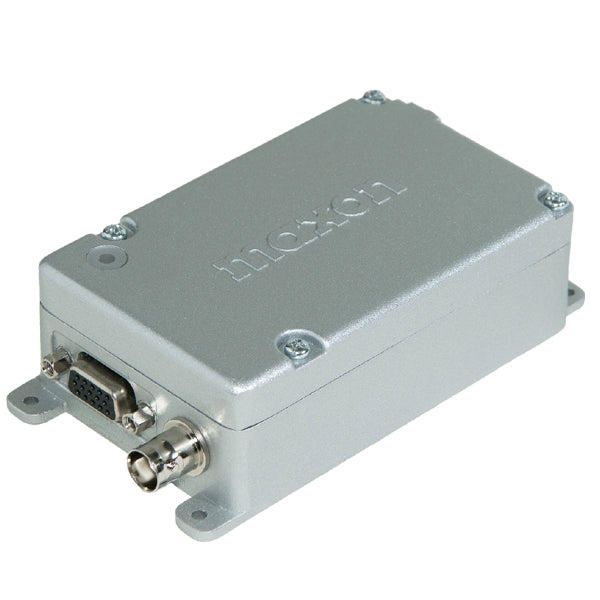

Maxon SD-174EL UHF Data Radio

Product Description

Maxon - SD-174EL UHF Data Radio, 450-490 MHz, 5 / 1 W, 16 Channels (Dip-Switch), Time-Out-Timer, CTCSS / DCS, DE-15 Pin Female Connector, LED Status Indicator

BNC-Female antenna connector, GMSK (9600 Baud) and FFSK (4800 Baud) modem options, PC programmable

Radio only, additional accessories sold separately

Maxon SD-174EL UHF Data Radio

The Maxon (TecNet) SD-170EL Series of data radios are durable, reliable and designed to meet the needs for a variety of wireless applications. These radios include optional FFSK or GMSK modem boards, which add even more diversity to this cost effective radio

The modules incorporate the most requested mechanical footprint and BNC antenna connection. Adjustable transmit power settings from one to five watts provide the power needed on any job, and the tri-color LED indicator gives instant on-sight status of the radios operation. Combine those features with low current drain and fast transmitter/receiver attack times for superior operation even in the harshest of system demands. The die cast aluminum cabinet/ lid provides resistance to RF interference, and gives exceptional environmental durability in extreme conditions.

Whether implementing a new system or installing into an existing system, the Maxon family of data telemetry radios have been the choice of OEM and end-users worldwide for over 25 years.

Available as:

SD-171EL: 142-174 MHz VHF data radio

SD-174EL: 450-490 MHz UHF data radio

Features

• LED status indicator (SD-171EL, SD-174EL only)
• 5 / 1 Watt power output
• VHF (142-174 MHz), UHF (450-490 MHz)
• 16 channels (Dip Switch Select)
• Modem options (FFSK/GMSK)
• CTCSS/DCS encode / decode
• DE-15 female connector
• 12.5 / 25 kHz channel spacing
• TX Time-Out-Timer
• Carrier detect
• Busy channel lockout
• BNC female antenna connector
• Squelch - software aligned

Featured Applications:

Water/Waste Treatment Plants, Oil and Gas Field, SCADA Security/Alarm System, Gate Systems, Remote Controls, Commercial Sign Control, Automatic Vehicle Location, Murphy/Kill Switches, Weather Monitoring, Irrigation Systems, Emergency Call Boxes, Low Power Repeater.

Accessories

ANTENNAS

TB-450BN UHF (400-512 MHz) 6 Uncut Antenna, BNC
G8BI Mag Mount Base, coax, BNC Connector; Requires QW152 or QW450
G8BI20 Mag Mount Base, 20 coax, BNC Connector; Requires QW152 or QW450
QW152 18 VHF Wave Antenna (NMO Type): Use with G8BI or G8BI20
QW450 6 UHF Wave Antenna (NMO Type): Use with G8BI or G8BI20

HEAT SINK

ACC-HSNF Aluminum Black Anodized Pin Style Flat Mount

PROGRAMMING

ACC-513 GMSK 9600 Baud Modem
ACC-2514E FFSK 4800 Baud Modem
ACC-916E/N Programming Software
ACC-2016E Programming Cable (USB)
