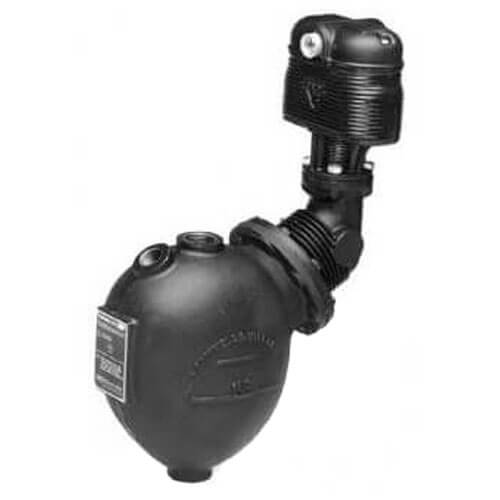

McDonnell 163000 Hi Pressure Level Control

Product Overview

Float type low water cutoff, for steam or hot water boilers. Automatic reset, 120 volt dual switches for low water cut-off and alarm or electric water feeder. Maximum pressure is 50 psi. Side tapping is 2-1/2" female IP for installation with a nipple directly into the boiler.

• For commercial and industrial low or high pressure steam boilers
• Maintains consistent water level regardless of pressure
• For boilers of any steaming capacity
• No. 5 Switch included
• Magnetic repulsion eliminates need for bellows
• Optional features - Manual reset
• 7B switch (135ohm proportional control signal) to maintain constant boiler water level
• 1" NPT connections
• Maximum pressure 150 psi (10.5 kg/cm2)
