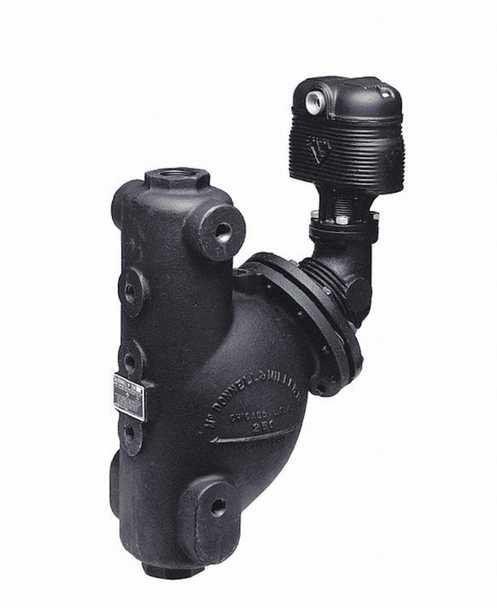

McDonnell & Miller - 164400 For commercial and industrial low or high pressure steam boilers
Specifications- Maintains consistent water level regardless of pressure
- Water column with integral tappings for gauge glass and tri-cock installations
- For boilers of any steaming capacity
- 7B switch (135ohm proportional control signal) to maintain constant boiler water level
- 1"" NPT connections
- Maximum pressure 150 psi (10.5 kg/cm2)
Additional Information
ApplicationSteam Boilers
Switch#7B
Max Pressure150 psi
TypeCombo
Reset TypeAutomatic
Featuresw/ Water Column
Depth (Inches)13"
Length20-1/2"
Width6-3/4"
Thread Size1"
Connection TypeThreaded
Pilot Duty Rating345 VA
CategoryLow Water Cutoffs
Depth 13"
Length20-1/2"
ManufacturerMcDonnell & Miller
Mpn164400
Weight52.5
Width6-3/4"
