category:
Low Water Cutoffs
depth:
13"
length:
20-1/2"
manufacturer:
McDonnell & Miller
mpn:
164700
subcategory:
Steam
type:
Line Voltage Low Water Cutoffs
weight:
52.5
width:
6-3/4"
Product Overview

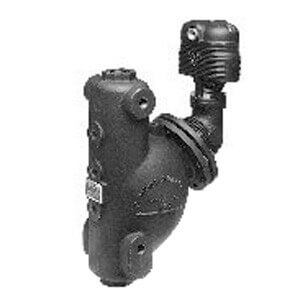

For commercial and industrial low or high pressure steam boilers
Specifications- Maintains consistent water level regardless of pressure
- Water column with integral tappings for gauge glass and tri-cock installations
- For boilers of any steaming capacity
- Magnetic repulsion eliminates need for bellows
- 7B switch (135ohm proportional control signal) to maintain constant boiler water level
- 1"" NPT connections
- Maximum pressure 150 psi (10.5 kg/cm2)
Additional Information
ApplicationSteam Boilers
Switch#7B
Max Pressure150 psi
Reset TypeAutomatic
TypeCombo
Featuresw/ Water ColumnAlternate Tappings
Depth (Inches)13"
Length20-1/2"
Width6-3/4"
Thread Size1-1/4"
Connection TypeThreaded
Pilot Duty Rating345 VA
