category:
Low Water Cutoffs
manufacturer:
McDonnell & Miller
mpn:
165200
subcategory:
Steam
type:
Line Voltage Low Water Cutoffs
weight:
52.5
Product Overview

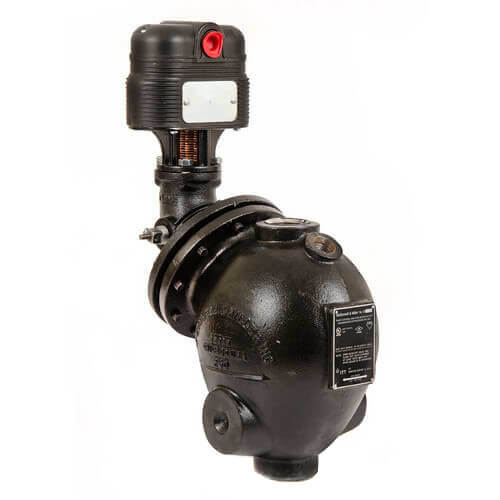

Series 94 Combination Low Water Cut-Off and Pump Controller for Steam Boilers
Features:- For commercial and industrial low or high pressure steam boilers
- Maintains consistent water level regardless of pressure
- For boilers of any steaming capacity
- No. 5 Switch included
- Magnetic repulsion eliminates need for bellows
- Optional features - Manual reset
- 7B switch to maintain constant boiler water level (BSPT threads)
- 1-1/4" NPT connections
- Maximum pressure 250 psi (17.6 kg/cm2)
- 10 bolt flange
Additional Information
ApplicationSteam Boilers
Switch#5
Max Pressure250 psi
TypeCombo
Reset TypeAutomatic
Depth (Inches)12-15/16"
Length18-13/16"
Width (Inches)7"
Thread Size1-1/4"
Connection TypeThreaded
Pilot Duty Rating345 VA
