category:
Low Water Cutoffs
manufacturer:

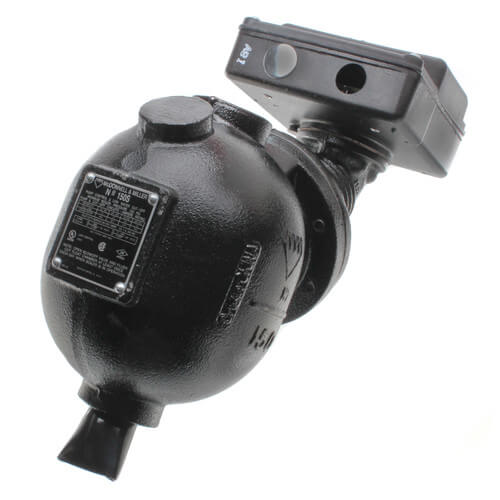

McDonnell & Miller
mpn:
171702
subcategory:
Steam
type:
Line Voltage Low Water Cutoffs
weight:
25.7
Product Overview
Features- For commercial and industrial low or high pressure boiler applications
- For boilers of any steaming capacity
- Monel bellows provides corrosion resistance
- Snap action switches for high temperature service
- 1 Single pole, single throw switch for pump control
- 1 Single pole, double throw switch for low water cut-off and alarm actuation
- Optional features: Manual reset, 2 Single pole, single throw switches, 2 Single pole, double throw switches, Float block, BSPT threads
- Maximum pressure 150 psi (10.5 kg/cm2)
Additional Information
ApplicationSteam Boilers
SwitchSPDTSPST
Max Pressure150 psi
TypeFloat-StyleCombo
FeaturesSnap Switch
Reset TypeAutomatic
Thread Size1"
Connection TypeThreaded
Pilot Duty Rating345 VA
Electrical Ratings (ALR)44.4 A @ 120 Vac22.2 A @ 240 VAC
Electrical Ratings (AFL)7.4 A @ 120 Vac3.7 A @ 240 VAC
