category:
Low Water Cutoffs
manufacturer:
McDonnell & Miller
mpn:
172811
subcategory:
Steam
type:
Line Voltage Low Water Cutoffs
weight:
39.7

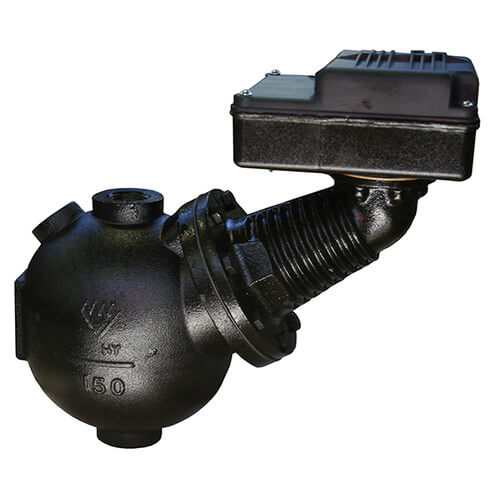

Product Overview
For commercial and industrial low or high pressure boiler applications
Specifications- For boilers of any steaming capacity
- Monel bellows provides corrosion resistance
- Snap action switches for high temperature service:1 Single pole, single throw switch for pump control. 1 Single pole, double throw switch for low water cut-off and alarm actuation
- Maximum pressure 150 psi
- Manual reset
- alternate tappings
Additional Information
ApplicationSteam Boilers
Reset TypeManual
Max Pressure150 psi
SwitchSPDTSPST
TypeFloat-StyleCombo
Featuresw/ Water ColumnAlternate Tappings
Depth (Inches)13-3/8"
Length (Inches)16"
Width5-7/8"
Electrical Ratings (AFL)7.4 A @ 120 VAC3.7 A @ 240 VAC
Electrical Ratings (ALR)44.4 A @ 120 VAC22.2 A @ 240 VAC
Pilot Duty Rating345 VA
Connection TypeThreaded
Thread Size1-1/4"
